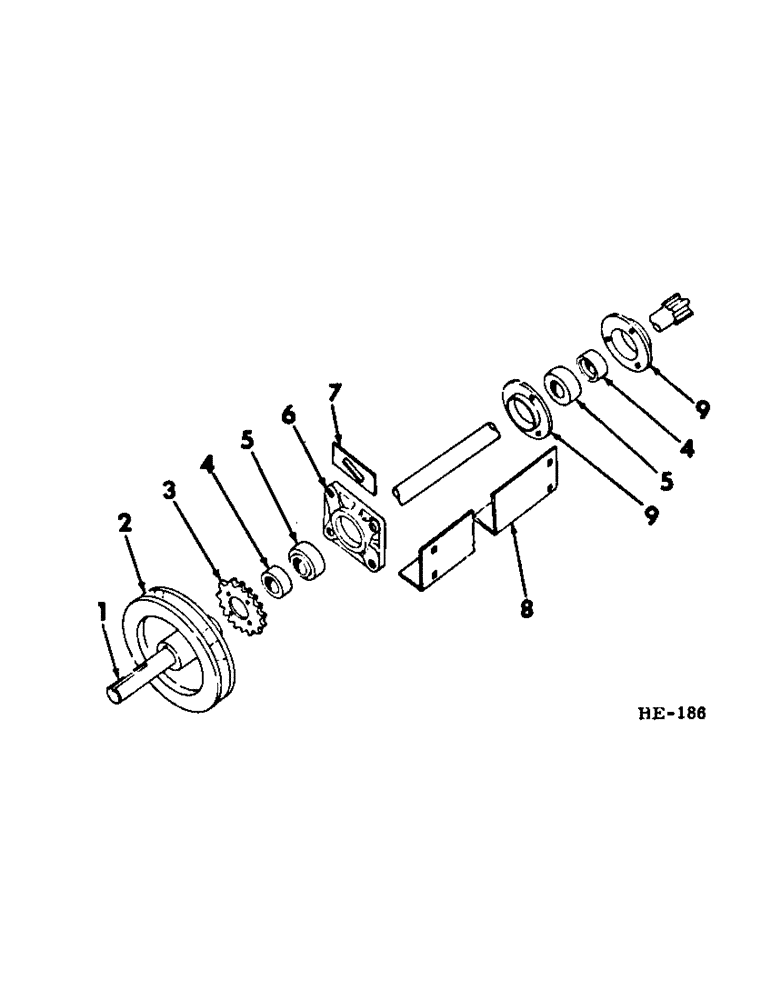

Запчасти Case IH 275 (Q-20) - PLATFORMS, MAIN DRIVE SHAFT Platforms
№
Артикул
Название
Примечание
Количество
1
595691R1
SHAFT, 10 ft main drive
1шт.
1
595692R1
SHAFT, 12 ft main drive
1шт.
1
595693R1
SHAFT, 14 ft main drive
1шт.
1
595694R1
SHAFT, 16 ft main drive
1шт.
2
595695R1
PULLEY, knife drive
1шт.
Q3952
KEY,Gib, 3/8" Sq x 2 3/4"
3/8 x 2-3/4" sq-gib-hd
1шт.
3
595696R1
SPROCKET ASSY.
SPROCKET, 24T drive (NOT pea platform)
1шт.
180078
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
5/16 x 7/8"
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
3
592960R1
SPROCKET ASSY.
SPROCKET, 20T drive (pea platform)
1шт.
180078
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
5/16 x 7/8"
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
4
455104R11
COLLAR
outer brg lkg (includes 1 - 102592, SCREW)
1шт.
5
565672R91
BALL BEARING,1.25" ID x 72 mm OD x 1.53125"
main drive shaft
2шт.
6
607332R1
HOUSING
RETAINER, main drive shaft brg LH
1шт.
550796R1
CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5
BOLT, 3/8 x 1-1/4" crg
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
7
595720R1
STRIP, brg retainer wedge LH
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1"
1шт.
20803R1
WASHER
13/32 x 1 x 11 ga
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
8
595697R1
ANGLE, 10 ft platform shaft cover
1шт.
8
595698R1
ANGLE, 12 ft platform shaft cover
1шт.
8
595699R1
ANGLE, 14 ft platform shaft cover
1шт.
8
595700R1
ANGLE, 16 ft platform shaft cover
1шт.
598809R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
BOLT, 3/8 x 3/4" crg
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
9
617863R1
FLANGED BEARING
RETAINER, drive shaft brg RH
2шт.
495967R1
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
BOLT, 3/8 x 1" crg
3шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
Выбрано товаров: 35
