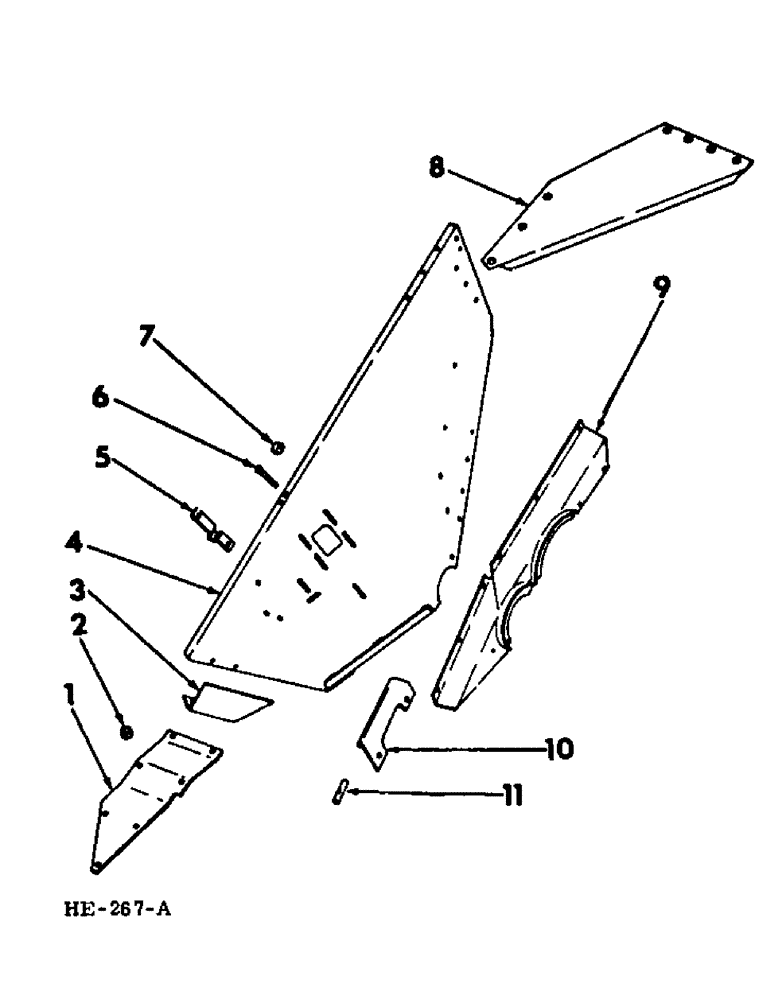

Запчасти Case IH 275 (Q-18) - PLATFORMS, PLATFORM SIDES Platforms

1

595632R2

SOLE

platform side RH (shown)

1шт.

1

595631R2

SOLE

platform side LH

1шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1" No. 3 plow (LH)

1шт.

19020R1

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2

BOLT, 3/8 x 1-1/4" No. 3 plow (RH)

1шт.

607393R1

CARRIAGE BOLT,7/16" - 14 x 1", Grade 5

BOLT, 7/16 x 1" crg

3шт.

609120R1

BOLT,Short NK, 7/16"-14 x 1 1/8", G5. Full Th

7/16 x 1-1/8" crg (LH)

2шт.

19696R1

LOCK NUT,1/2"-13, GB

BOLT, 7/16 x 1-1/2" crg

3шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

2

SA2344

SPACER,3/8" Pipe x 7/16"

platform sole

2шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2" type 1 crg

2шт.

271501

SOCKET

NUT, 7/16"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

3

596011R2

DEFLECTOR, front crop RH (shown)

1шт.

3

598032R1

DEFLECTOR, front crop LH

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8"

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

595606R11

SIDE ASSY.

SIDE, low profile platform RH (on machines built prior to 1969 season order 1 - 811198C1, SIDE; 1 - 617197R2, GUIDE & 1 - 823275C1, BRACKET)

1шт.

4

811198C1

SIDE, 12 ft & 14 ft low profile platform RH (1969 season & since) (shown)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

5шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

2шт.

120376

NUT,5/16"-18, G5

5шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

595605R11

SIDE ASSY.

SIDE, low profile platform LH (on machine built prior to 1969 season order 1 - 811088C1, SIDE; 1 - 617197R2, GUIDE & 1 - 823275C1, BRACKET)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

5шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

2шт.

120376

NUT,5/16"-18, G5

4шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

811088C1

SIDE, 12 ft & 14 ft low profile platform LH (1969 season & since)

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 5/16 x 5/8"

5шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4" crg

2шт.

120376

NUT,5/16"-18, G5

4шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

823275C1

BRACKET, reel adjusting bolt RH (on machines built 1969 season & since)

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 x 1/2"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

619685R2

BOLT, reel adjusting

2шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga

2шт.

7

619260R1

SPACER, platform side RH

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

8

596226R1

GUSSET, side upper tie RH (shown)

1шт.

8

596225R1

GUSSET, side upper tie LH

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8" (RH)

3шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

9

609628R92

DEFLECTOR, platform side RH (shown)

1шт.

9

595633R91

DEFLECTOR, platform side LH

1шт.

171757

COVER

SCREW, 1/4 x 3/4" slt-pan-hd type D tapping

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

(LH) Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

6шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 5/16"

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

10

596012R1

BRACKET, reel adjusting LH

1шт.

10

598037R1

BRACKET, reel adjusting RH (shown)

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd (LH)

2шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4" crg (RH)

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

11

596013R1

BAR, reel adjusting bolt

2шт.
