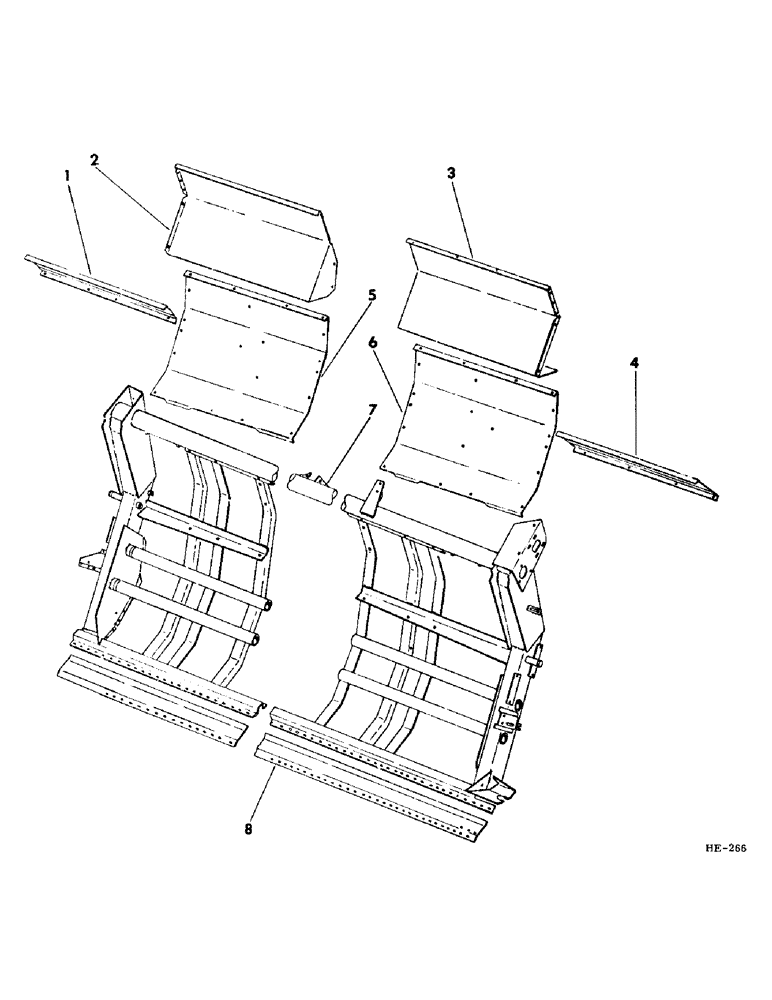

Запчасти Case IH 275 (Q-14) - PLATFORMS, DUAL AUGER PLATFORM FRAME Platforms

1

594226R2

STRIPPER, 16 ft platform RH (to be cut to size for the 10 ft, 12 ft & 14 ft platform)

1шт.

2

595586R11

SIDE, 10 ft platform back upper RH

1шт.

2

595588R11

SIDE, 12 ft platform back upper RH

1шт.

2

595590R11

SIDE, 14 ft platform back upper RH

1шт.

2

595592R11

SIDE, 16 ft platform back upper RH

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

5шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

5шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

2шт.

120376

NUT,5/16"-18, G5

5шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

595585R11

SIDE, 10 ft platform back upper LH

1шт.

3

595587R11

SIDE, 12 ft platform back upper LH

1шт.

3

595589R11

SIDE, 14 ft platform back upper LH

1шт.

3

595591R11

SIDE, 16 ft platform back upper LH

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

5шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

5шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

2шт.

120376

NUT,5/16"-18, G5

5шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

595225R2

STRIPPER, 16 ft platform LH (to be cut to size for the 10 ft, 12 ft & 14 ft platform)

1шт.

5

595594R1

SECTION, 10 ft platform bottom RH (NOT pea Windrower)

1шт.

5

595596R1

SECTION, 12 ft dual auger & low profile platform bottom RH

1шт.

5

595598R1

VALVE BLOCK

SECTION, 14 ft dual auger & low profile platform bottom RH

1шт.

5

595600R1

SECTION, 16 ft dual auger bottom RH

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg (16 used 10 ft; 17 used 12 ft & 14 ft; 19 used 16 ft platform)

1шт.

20485R1

BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd

7/16 x 3/4" type 1 crg

1шт.

120376

NUT,5/16"-18, G5

(1 used per bolt) 5/16"-18, G5

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

6

595593R1

SECTION, 10 ft platform bottom LH (NOT pea Windrower)

1шт.

6

595595R1

SECTION, 12 ft dual auger & low profile platform bottom LH

1шт.

6

595597R1

VALVE BLOCK

SECTION, 14 ft dual auger & low profile platform bottom LH

1шт.

6

595599R1

SECTION, 16 ft dual auger bottom LH

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg (16 used 10 ft; 17 used 12 ft & 14 ft; 19 used 16 ft platform)

1шт.

20485R1

BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd

7/16 x 3/4" type 1 crg

1шт.

120376

NUT,5/16"-18, G5

(1 used per bolt) 5/16"-18, G5

1шт.

271501

SOCKET

NUT, 7/16"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

7

FRAME, 10 ft dual auger low profile platform (for service on machines built prior to 1969 season, order 1 - 823363C1, FRAME & 2 - 617197R2, GUIDES)

1шт.

7

823363C1

FRAME, 10 ft dual auger low profile platform (1969 season)

1шт.

7

596316R91

FRAME, 10 ft dual auger platform (NOT low profile) (for use on machines built prior to 1968 season)

1шт.

7

FRAME, 10 ft dual auger platform (NOT low profile) (for service for the 1968 season, order 1 - 823359C1, FRAME & 2 - 617197R2, GUIDES)

1шт.

7

823359C1

FRAME, 10 ft dual auger & pea Windrower platform (NOT low profile platform) (for use on machines built 1969 season & since)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

7

FRAME, 12 ft dual auger low profile platform (for service on machines built prior to 1969 season, order 1 - 823364C1, FRAME & 2 - 617197R2, GUIDES)

1шт.

7

823364C1

FRAME, 12 ft dual auger low profile platform (for use on machines built 1969 season & since)

1шт.

7

596317R91

FRAME, 12 ft dual auger platform (NOT LOW PROFILE) (prior to 1968 season)

1шт.

7

FRAME, 12 ft dual auger platform (NOT low profile) (for service for the 1968 season, order 1 - 823360C1, FRAME & 2 - 617197R2, GUIDES)

1шт.

7

823360C1

FRAME, 12 ft dual auger platform (NOT LOW PROFILE) (for use on machines built 1969 season & since)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

7

FRAME, 14 ft dual auger low profile platform (for service on machines built prior to 1969 season, order 1 - 823365C1, FRAME & 2 - 617197R2, GUIDES)

1шт.

7

823365C1

FRAME, 14 ft dual auger low profile platform (for use on machines built 1969 season & since)

1шт.

7

596318R91

FRAME, 14 ft dual auger platform (NOT low profile) (prior to 1968 season)

1шт.

7

FRAME, 14 ft dual auger platform (NOT low profile) (for service for the 1968 season, order 1 - 823361C1, FRAME & 2 - 617197R2, GUIDES)

1шт.

7

823361C1

FRAME, 14 ft dual auger platform (NOT low profile) (for use on machines built 1969 season & since)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

7

FRAME, 16 ft dual auger low profile platform (for service on machines built prior to the 1969 season, order 1 - 823366C1, FRAME & 2 - 617197R2, GUIDES)

1шт.

7

823366C1

FRAME, 16 ft dual auger low profile platform) (for use on machines built for the 1969 season & 1979 season)

1шт.

7

596319R91

FRAME, 16 ft dual auger platform (NOT low profile) (for use on machines built prior to 1968 season)

1шт.

7

FRAME, 16 ft dual auger platform (NOT low profile) (for service for the 1968 season, order 1 - 823362C1, FRAME & 2 - 617197R2, GUIDES)

1шт.

7

823362C1

FRAME, 16 ft dual auger platform (NOT low profile) (for use on machine built for the 1969 season to the 1972 season)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

8

595601R1

GUARD, 10 ft platform lower stone

1шт.

8

595602R1

GUARD, 12 ft platform lower stone

1шт.

8

595603R1

GUARD, 14 ft platform lower stone

1шт.

8

595604R1

GUARD, 16 ft platform lower stone

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg (10 used 10 ft; 12 used 12 ft; 14 used 14 ft & 16 used 16 ft platform)

1шт.

607393R1

CARRIAGE BOLT,7/16" - 14 x 1", Grade 5

BOLT, 7/16 x 1" crg

4шт.

120377

NUT,3/8" - 16, Gr 5

(1 used per bolt) 3/8"-16, G5

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

596280R92

TAPPET

LIFTER, 10 ft pea Windrower platform (also refer to "PEA WINDROWER" in section "N" of this parts catalog)

13шт.

596281R21

SOLE, 10 ft pea Windrower platform skid (also refer to "PEA WINDROWER" in section "N" of this parts catalog)

2шт.

596283R1

BRACE

skid sole attaching (also refer to "PEA WINDROWER" in section "N" of this parts catalog)

4шт.
