Запчасти Case IH 275 (Q-10) - PLATFORMS, AUGER DRIVE Platforms

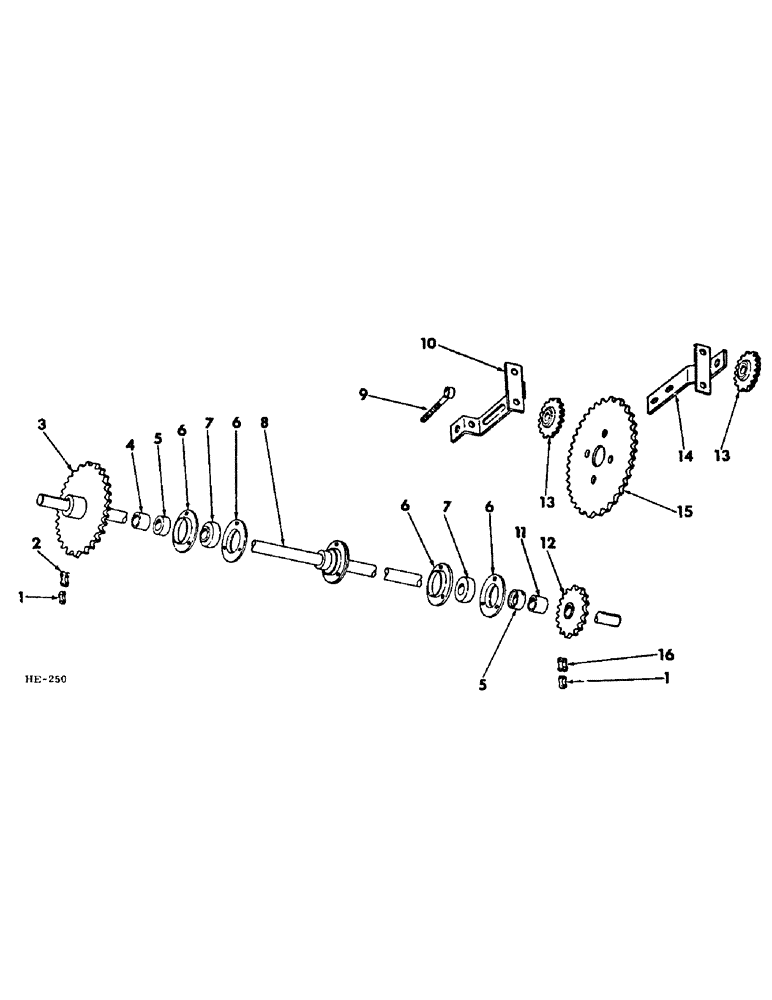

Схема запчастей Case IH 275 - (Q-10) - PLATFORMS, AUGER DRIVE Platforms

Артикул

Название

Примечание

Количество

1

1310D

LINK

drive chain connecting

1шт.

2

CHAIN, 5/8" std pitch auger counter shaft drive (for service order 1 - 1791D, 10 ft length of chain, reduce to 71 links & add 1 - 1310D, connecting LINK)

1шт.

3

596150R11

SPROCKET, 42T auger counter shaft LH

1шт.

Q3928

KEY,Gib, 5/16" Sq x 1 1/4"

5/16 x 1-1/4" gib-hd

1шт.

4

591730R1

SPACER,1" Pipe x13"

brg & sprocket LH

1шт.

5

455102R11

COLLAR

outer brg locking (includes 1 - 102592, SCREW)

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt slt

1шт.

6

462360R1

FLANGED BEARING

RETAINER, counter shaft brg

6шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

3шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1" crg

6шт.

120376

NUT,5/16"-18, G5

9шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

7

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

counter shaft

3шт.

8

595703R2

SHAFT, auger drive counter

1шт.

9

609744R91

BOLT

lower support adjusting

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

10

596155R11

SUPPORT, lower tightener sprocket

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4"

1шт.

893862R1

WASHER

15/32 x 1-1/4 x 11 ga

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

271501

SOCKET

NUT, 7/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

11

661036R1

SPACER

brg & sprocket RH

1шт.

12

596151R11

SPROCKET ASSY.

SPROCKET, 22T auger drive

1шт.

Q3928

KEY,Gib, 5/16" Sq x 1 1/4"

5/16 x 1-1/4" gib-hd

1шт.

13

460529R91

BEARING

SPROCKET, 17T lower tightener & upper idler (opt to use 565442R91, SPROCKET)

2шт.

13

565442R91

SPROCKET

17T lower tightener & upper idler (opt to use 460529R91, SPROCKET)

2шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2" (upper sprocket)

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2" (lower sprocket)

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, (Upper idler) 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

14

596153R11

SUPPORT, upper idler sprocket

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

15

595781R2

SPROCKET ASSY.

SPROCKET, 55T auger driven

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

16

CHAIN, 5/8" standard pitch auger drive (for service order 1 - 1791D, 10 ft chain, reduce to 146 links & add 1 - 1310D, connecting link

1шт.

Выбрано товаров: 44
