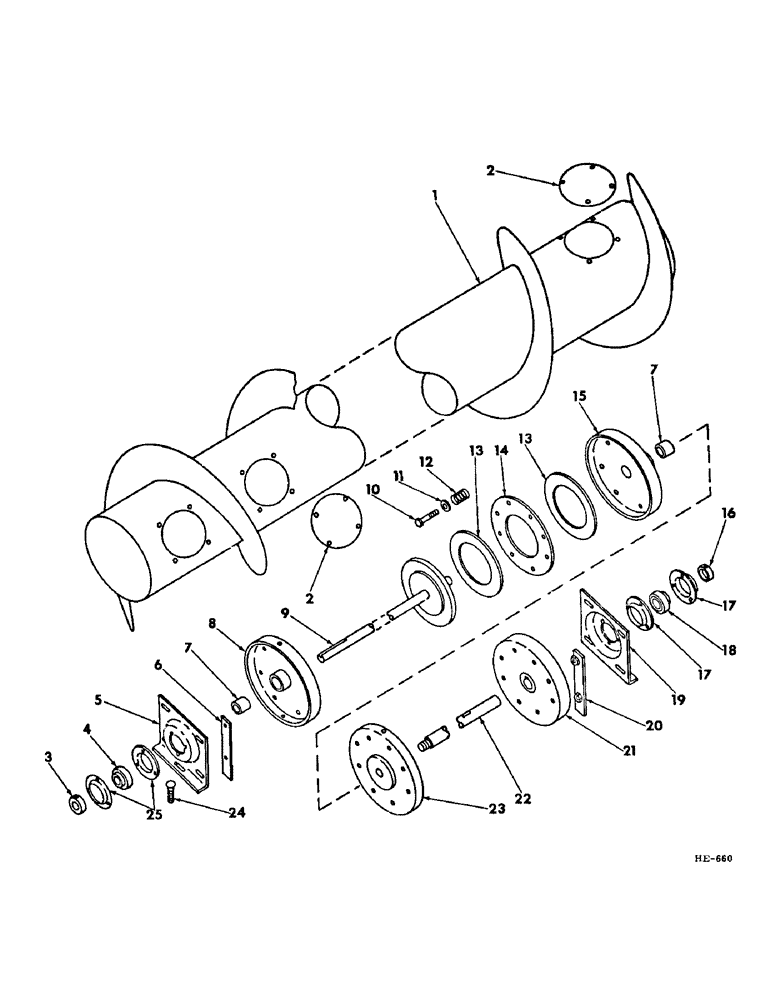

Запчасти Case IH 275 (Q-08) - PLATFORMS, SINGLE AUGER PLATFORM AUGER Platforms

1

596386R91

AUGER, 14 ft platform (includes 3 - 596113R1, COVERS; 12 - 120214, LOCK-WASHERS & 12 - 70716R1, SCREWS)

1шт.

2

596113R1

COVER, auger hand hole

3шт.

20716R1

SCREW,Sl Pan Hd, 5/16" - 18 x 1/2"

5/16 x 1/2" slt-pan-hd

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

3

455104R11

COLLAR

outer brg lkg (includes 1 - 102592, SCREW)

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt

1шт.

4

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

clutch shaft

1шт.

5

596115R1

SUPPORT, auger drive clutch shaft

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

596114R11

STRAP, auger drive clutch shaft support mounting

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

596112R1

BUSHING, end support retainer

2шт.

8

596109R91

RETAINER, auger outer end support RH (includes 596112R1, BUSHING)

1шт.

609680R1

SCREW

3/8 x 1/2" b-hd self-lk soc

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

9

596116R1

SHAFT, auger drive clutch

1шт.

10

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2" pressure spg

8шт.

11

20803R1

WASHER

13/32 x 1 x 11 ga spg

8шт.

12

613827R1

SPRING

clutch shaft pressure

8шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2"

8шт.

20803R1

WASHER

13/32 x 1 x 11 ga

8шт.

13

596118R1

FACING

auger drive clutch shaft

2шт.

14

596119R1

PLATE, clutch shaft pressure

1шт.

15

596108R11

RETAINER, auger inner end support RH (includes 1 - 596112R1, BUSHING)

1шт.

609680R1

SCREW

3/8 x 1/2" b-hd self-lk soc

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

16

455104R11

COLLAR

outer brg lkg (includes 1 - 102592, SCREW)

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

1шт.

17

617863R1

FLANGED BEARING

RETAINER, auger support shaft brg LH

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

18

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

auger support shaft LH

1шт.

19

596115R1

SUPPORT, auger support shaft LH

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

20

596114R11

STRAP, shaft support mounting LH

2шт.

21

596393R1

RETAINER, auger outer support LH

1шт.

609680R1

SCREW

3/8 x 1/2" b-hd self-lk soc

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

22

596397R1

SHAFT, platform auger LH

1шт.

117977

WOODRUFF KEY

KEY, 5/16 x 1" WOODRUFF

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

23

596395R1

RETAINER, auger inner support LH

1шт.

609680R1

SCREW

3/8 x 1/2" b-hd self-lk soc

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

24

611034R1

BOLT, 3/8 x 2-1/2" special crg support adjusting

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga

2шт.

25

617863R1

FLANGED BEARING

RETAINER, clutch shaft brg

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.
