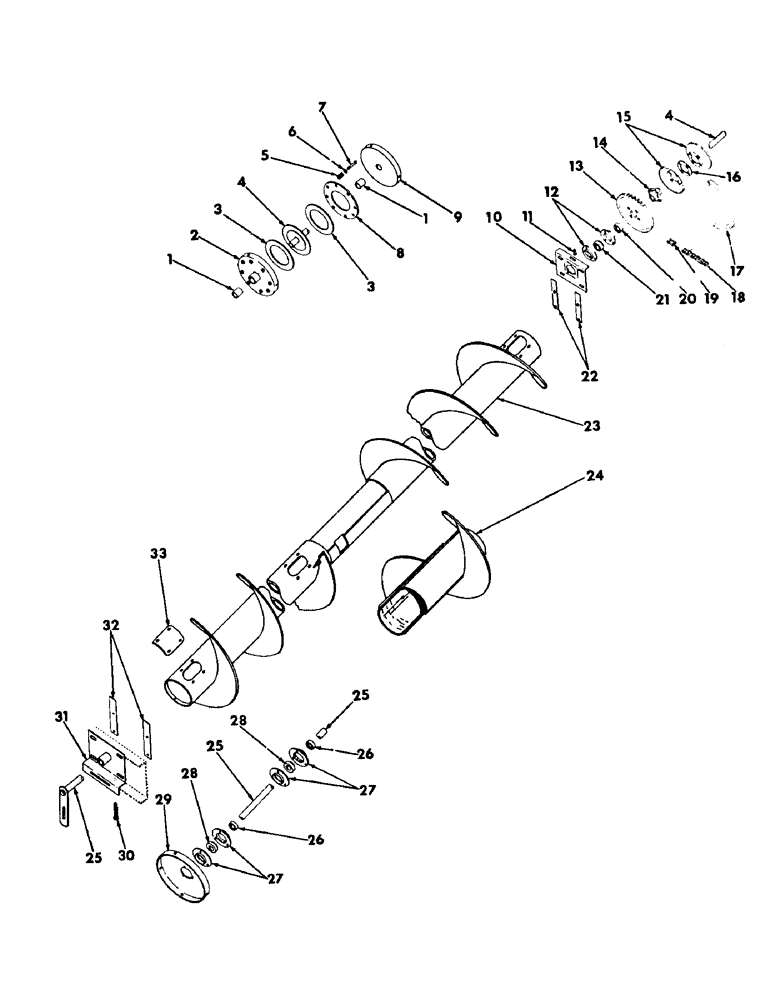

Запчасти Case IH 275 (Q-06) - PLATFORMS, SINGLE AUGER PLATFORM AUGER Platforms

1

596112R1

BUSHING, end support retainer RH

2шт.

2

596108R11

RETAINER, inner support RH (includes 1 - 596112R1, BUSHING)

1шт.

609680R1

SCREW

LK-SCREW, 3/8 x 1/2" b-hd self

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

3

596118R1

FACING

auger drive clutch shaft

2шт.

4

596116R11

SHAFT, auger drive clutch

1шт.

5

613827R1

SPRING

clutch shaft pressure

8шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2"

8шт.

20803R1

WASHER

13/32 x 1 x 11 ga

8шт.

6

20803R1

WASHER

13/32 x 1 x 11 ga spg

8шт.

7

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2" pressure spg

8шт.

8

596119R1

PLATE, clutch shaft pressure

1шт.

9

596109R91

RETAINER, outer end support RH (includes 1 - 596112R1, BUSHING)

1шт.

609680R1

SCREW

LK-SCREW, 3/8 x 1/2" b-hd self

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

10

596115R1

SUPPORT, auger drive clutch shaft

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

611034R1

BOLT, 3/8 x 2-1/2" support adjusting crg

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

12

617863R1

FLANGED BEARING

RETAINER, clutch shaft outer brg

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

13

595781R2

SPROCKET ASSY.

SPROCKET, 55T auger driven

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

14

596156R1

HUB, reel drive

1шт.

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2" tapered gib-hd

1шт.

15

609727R3

PULLEY

reel drive half

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

16

609776R1

RETAINER, reel drive pulley spacer

6шт.

17

558141R1

V-BELT,0.88" W x 105.20" L

Reel drive 0.88" W x 105.20" L

1шт.

18

CHAIN, 5/8" std. pitch auger drive (for service order 1 - 1791D, 10 ft length of chain, reduce to 146 links & add 1 - 1310D, connecting link)

1шт.

19

1310D

LINK

drive chain connecting

1шт.

20

455104R11

COLLAR

outer brg lkg (includes 1 - 102592, SCREW)

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

1шт.

21

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

auger drive clutch shaft outer

1шт.

22

596114R11

STRAP, clutch shaft support mounting

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

AUGER, single platform (on machines built prior to 1968, the following must be ordered: 1 - 596386R91, AUGER; 1 - 565672R91, BEARING; 3 - 495967R1, BOLT; 4 - 180122, BOLT; 1 - 611034R1, BOLT; 1 - 455104R11, COLLAR; 1 - 117977, KEY; 7 - 120377, NUT; 1 - 220086, NUT; 1 - 596393R1, RETAINER; 1 - 596395R1, RETAINER; 2 - 617863R1, RETAINER; 2 - 609680R1, SCREW; 1 - 596115R1, SUPPORT; 1 - 596397R1, SHAFT; 5 - 20803R1, WASHER; 1 - 131046, WASHER & 7 - 120382, WASHER)

1шт.

24

596259R91

EXTENSION, auger center opening LH

1шт.

24

596260R91

EXTENSION, auger center opening RH

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

20шт.

19576R1

BOLT,Short NK, 5/16"-18 x 7/8", G2, Full Thd

5/16 x 7/8" crg

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga

4шт.

120376

NUT,5/16"-18, G5

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

25

596134R11

SHAFT, 14 ft platform auger adjusting

1шт.

18684R11

BOLT

3/8 x 1-1/4" crg

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

Q3480

WASHER

13/32 x 1-1/2 x 11 ga

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

26

557115R11

COLLAR

COLLAR, brg lkg (includes 1 - 115321, SCREW)

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

2шт.

27

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

RETAINER, auger support shaft brg

4шт.

21860R1

BOLT, 3/8 x 7/8" crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

28

455960R91

BALL BEARING

BEARING, auger support shaft

2шт.

29

596107R1

RETAINER, auger support LH

1шт.

609680R1

SCREW

3/8 x 1/2" b-hd self-lk soc

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

30

610762R1

BOLT, 3/8 x 2-3/4" support adjusting

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

31

596136R11

SUPPORT, auger support shaft

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

32

596114R11

STRAP, auger support shaft LH mounting

1шт.

33

596113R1

COVER, auger hand hole

3шт.

114817

SCREW, No. 14 x 5/8" type "A" slt-pan-hd tapping

12шт.

130345R1

NUT, No. 14 type "J" speed

12шт.
