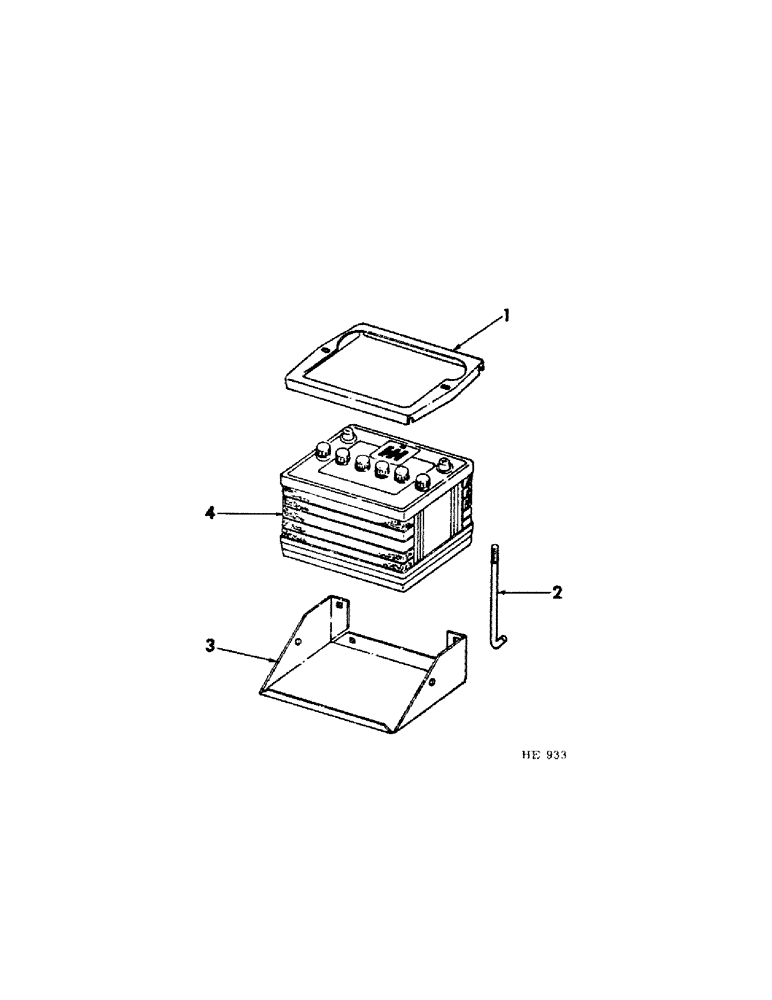

Запчасти Case IH 230 (08-6[A]) - ELECTRICAL, BATTERY AND TRAY (06) - ELECTRICAL

1

920645R1

CLAMP

COVER, battery

1шт.

2

599158R1

BOLT, battery cover hold down

2шт.

126177

WING NUT

NUT, 1/4" wing

2шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

599157R1

TRAY, battery

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

4

POL2487X

BATTERY, 12 volt dry charged, Prestolite (for U.S. machine) (to be furnished by dealer)

1шт.

4

912635R92

BATTERY, 12 volt dry charged, Prestolite (not for U.S machines)

1шт.
