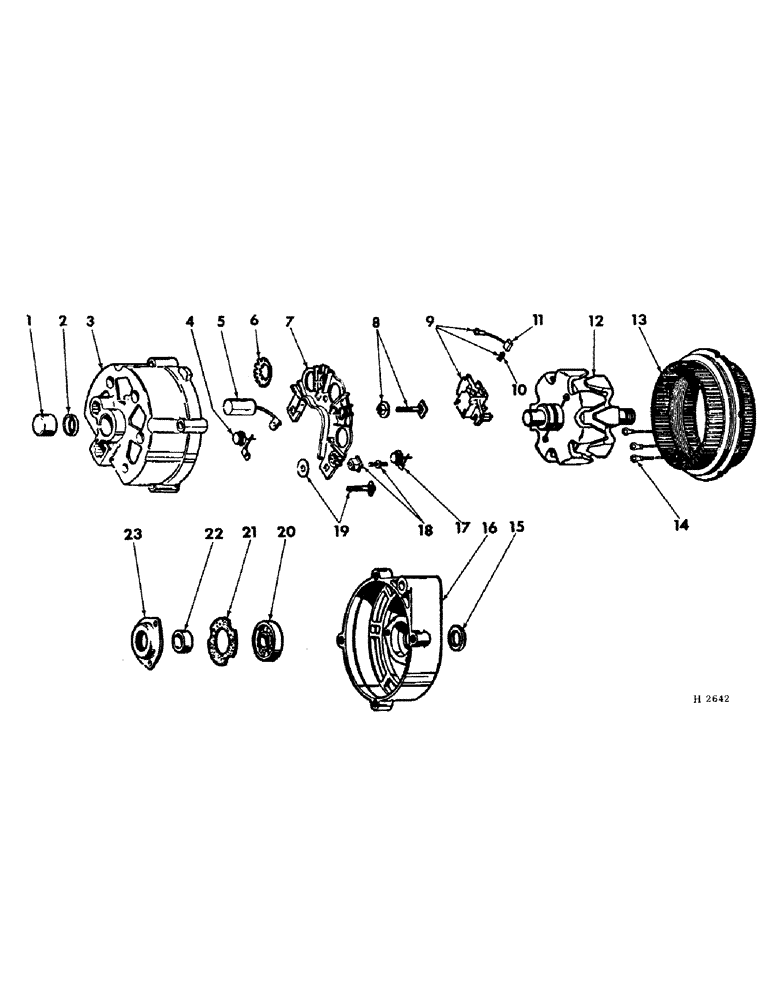

Запчасти Case IH 230 (08-5) - ELECTRICAL, ALTERNATOR (DELCO-REMY) (06) - ELECTRICAL

1100805

GENERATOR

ALTERNATOR, 12 volt (702337C91) (composed of all parts listed unless otherwise noted)

1шт.

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

Not part of alternator.

1шт.

121743

CHAIN,#12 - 24

no. 12

1шт.

Not part of alternator.

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

Not part of alternator.

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

Not part of alternator.

1шт.

1

7451763

BEARING

rotor end frame

1шт.

2

1961323

SEAL

RETAINER & FELT, rotor end frame

1шт.

3

1969329

FUNNEL

FRAME, rotor end composed of: (3) package 1964354, (1) bearing 7451763, (1) retainer 1961323, (1) condenser 1959455, (1) retainer 1960750

1шт.

1956975

BOLT

BOLT, generator through

4шт.

4

1964354

DIODE

PACKAGE, negative diode

3шт.

5

1959455

CAPACITOR

CONDENSER, rotor end frame

1шт.

6

1960750

VALVE SPRING

RETAINER, rotor end condenser

1шт.

7

1959828

PACKAGE

HEAT SINK & DIODE, generator (includes 1959834 & 1964353 packages)

1шт.

132768

SCREW,Sl Rnd Hd, #8 - 32 x 3/4"

heat sink attaching

1шт.

9419392

WASHER, attaching screw spg

1шт.

495-31025

WASHER,3/16"

attaching screw plain

1шт.

1959389

INSULATOR

attaching screw

1шт.

1959523

WASHER, attaching screw insulator

1шт.

8

1959833

TERMINAL CONNECTOR

PACKAGE, ground terminal

1шт.

9

1964682

HOLDER

BRUSH HOLDER & BRUSH, heat sink (includes brush springs)

1шт.

1957501

SCREW

holder attaching

2шт.

9419392

WASHER, holder screw spg

2шт.

10

1964117

SPRING

(order 1-1964682, package) (NSS)

1шт.

11

BRUSH, (order 1-1964682, package) (NSS)

1шт.

12

1958565

ROTOR

generator

1шт.

1915172

NUT

drive end shaft

1шт.

1941978

WASHER

drive end shaft

1шт.

13

1959381

COIL

STATOR, generator (includes 1959532 clips)

1шт.

14

1959532

CLIP, stator lead terminal

3шт.

15

1959991

COLLAR

drive end shaft outside

1шт.

16

1959917

FUNNEL

FRAME, drive end

1шт.

1956975

BOLT

BOLT, frame through

4шт.

17

1964353

DIODE

PACKAGE, positive diode

3шт.

18

1959834

TERMINAL STRIP

PACKAGE, diode junction terminal

3шт.

453434

NUT

junction terminal

3шт.

9419392

WASHER, junction terminal spg

2шт.

19

1959832

TERMINAL STRIP

PACKAGE, battery terminal

1шт.

20

904751

BEARING

drive end ball

1шт.

21

1912008

FELT

GASKET, brg retainer plate

1шт.

22

1963139

COLLAR CLAMP

COLLAR, drive end shaft inside

1шт.

23

1955494

PLATE

drive end brg retainer

1шт.

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

plate attaching

3шт.
