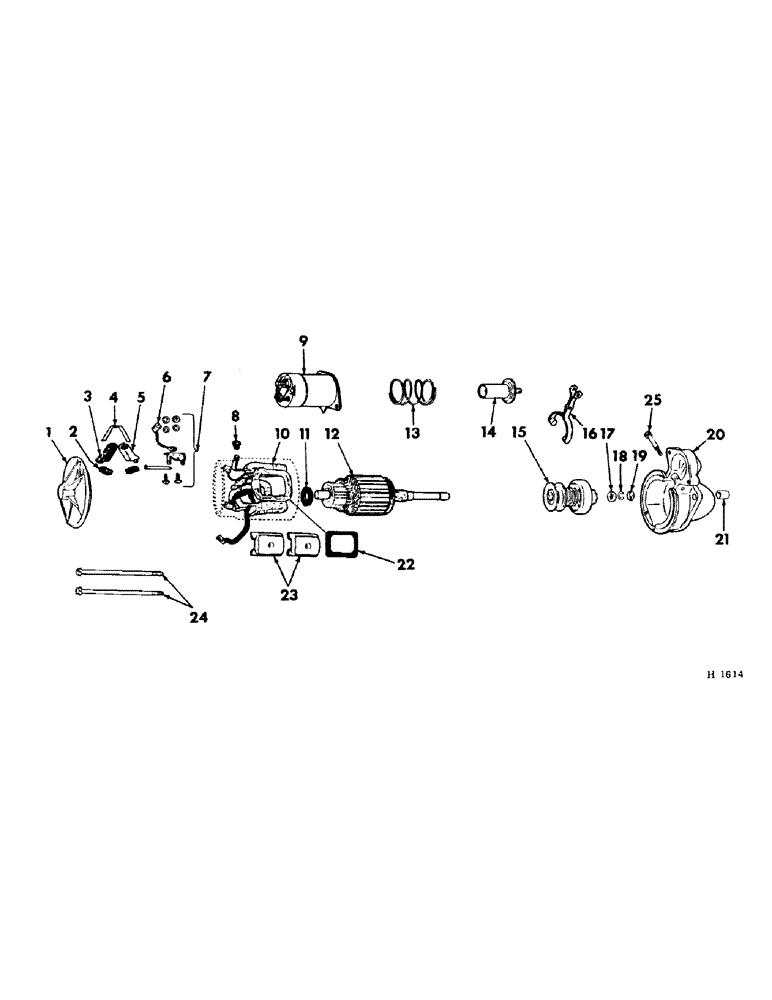

Запчасти Case IH 230 (08-4) - ELECTRICAL, STARTING MOTOR (DELCO-REMY) (06) - ELECTRICAL

1107344

MOTOR, 12 volt starting (387086R92) (composed of all parts listed below, unless otherwise noted)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

Not part of starting motor.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

Not part of starting motor.

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

Not part of starting motor.

1шт.

1

1928966

FRAME

commutator end

1шт.

2

1906945

COMMUTATOR BRUSH

BRUSH

4шт.

3

1926618

HOLDER

insulator

2шт.

1938058

AXLE PIN

PIN, brush holder

1шт.

1967747

SCREW

brush attaching

2шт.

4

1926622

VALVE SPRING

SPRING, brush

2шт.

5

1940477

HOLDER

brush ground

2шт.

1938058

AXLE PIN

PIN, brush holder

1шт.

443527

SCREW, brush attaching

2шт.

6

1926605

ELECTRICAL WIRE

LEAD, ground

2шт.

NLS

NO LONGER SERVICED

support attaching

4шт.

453435

LOCK WASHER

LK-WASHER, support screw

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

Support screw #10-24

4шт.

7

1928015

BRACKET

PACKAGE, brush holder support

2шт.

8

1966391

GROMMET

field frame

1шт.

9

1114356

SOLENOID,Starter

SWITCH, solenoid

1шт.

132255

SCREW, switch attaching Slotted Fil Hd, 1/4"-20 x 1/2"

1шт.

9421423

WASHER

LK-WASHER, attaching screw

1шт.

1949653

SCREW, lead attaching

1шт.

456319

BUSHING

LK-WASHER, lead screw

1шт.

120622

NUT,#8-32

1шт.

Not part of starting motor.

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

Not part of starting motor.

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

Not part of starting motor.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

Not part of starting motor.

1шт.

10

1967968

COIL, field

1шт.

11

818265

WASHER

brake leather

1шт.

12

1958949

ARMATURE, motor

1шт.

13

1958679

SPRING

plunger

1шт.

14

1941113

PLUNGER

solenoid

1шт.

15

1851430

DRIVE

motor

1шт.

16

1951567

LEVER

shift

1шт.

455106

PIN

shift lever

1шт.

17

1928021

COLLAR

stop

1шт.

18

1928022

SNAP RING

RING, retainer

1шт.

19

1838568

WASHER

COLLAR, thrust

1шт.

20

1964737

HOUSING, motor drive end (includes 1839345, bushing)

1шт.

809593

PIN

housing dowel

1шт.

21

1839345

BUSHING

drive end housing

1шт.

22

1927853

FOAM INSULATION

INSULATOR, field coil

1шт.

23

1931129

SHOE

pole

4шт.

1913100

SCREW

pole shoe

4шт.

24

1939970

FUSE

BOLT, through

2шт.

25

1932197

SCREW

STUD, shift lever

1шт.

9635082

NUT,5/16" - 18, Gr 5

Shift lever stud 5/16"-18, G5

1шт.

1953479

LK-WASHER, shift lever stud

1шт.
