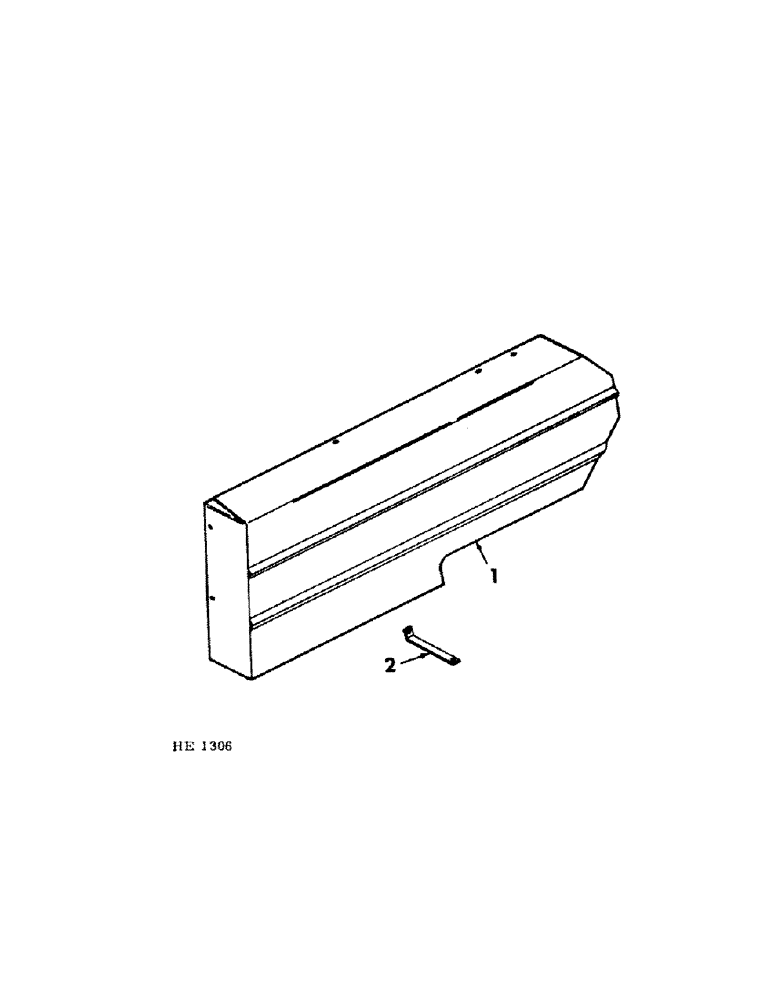

Запчасти Case IH 230 (13-7) - SUPERSTRUCTURE, CHASSIS PLATFORM DRIVE SHIELD RH (05) - SUPERSTRUCTURE

1

825793C1

HOOD, platform secondary drive shield

1шт.

341934C1

NUT

speed

8шт.

162074

COTTER PIN

SCREW, no. 14 5/8" pan-hd self-tapping

8шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

826114C1

SUPPORT, shield intermediate

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
