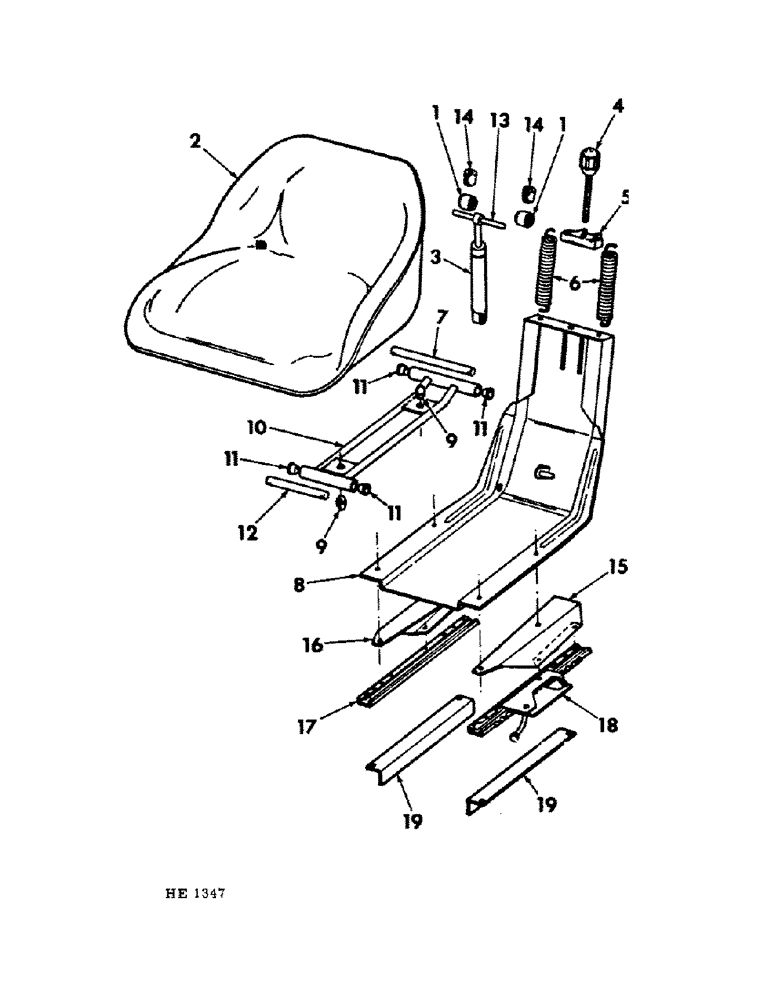

Запчасти Case IH 230 (13-5) - SUPERSTRUCTURE, OPERATORS SEAT (WILLBALD GRAMMAR) (05) - SUPERSTRUCTURE

SEAT ASSY, operator's (includes all parts listed below unless otherwise noted) (for service order 1-826855C91, seat assy)

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

4шт.

Not part of seat assy.

1шт.

120376

NUT,5/16"-18, G5

4шт.

Not part of seat assy.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Not part of seat assy.

1шт.

1

3134833R1

ROLLER

seat cushion

2шт.

2

826870C1

SHELL, seat

1шт.

3

3134837R1

SHOCK ABSORBER

ABSORBER, shock

1шт.

4

826880C1

SPINDLE

SCREW, tension adjusting

1шт.

21903R1

WASHER

17/32 x 3/4 x 17 ga

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

5

3134838R1

HOLDER

BRACKET, spring

1шт.

6

826878C1

SPRING, seat tension

2шт.

7

3134840R1

PIN

seat suspension base pivot

1шт.

103395

PIN,5/32" x 3/4"

Split (Cotter), 5/32" x 3/4"

2шт.

8

826873C1

BASE, seat suspension

1шт.

9

3134835R1

BUMPER

seat

2шт.

10

826872C1

STABILIZER, seat

1шт.

11

3134834R1

BUSHING

stabilizer pivot

4шт.

12

826876C1

PIN, seat stabilizer

1шт.

103395

PIN,5/32" x 3/4"

Split (Cotter), 5/32" x 3/4"

2шт.

13

826882C1

PIN, shock absorber

1шт.

826877C1

RING

retaining

3шт.

14

826879C1

BUMPER

seat suspension

2шт.

931568R1

SCREW,Pan Slotted, M4.8 x 1.6 x 32mm

slotted tapping

2шт.

15

826801C1

SUPPORT, seat LH

1шт.

Not part of seat assy.

1шт.

16

826802C1

SUPPORT, seat RH

1шт.

Not part of seat assy.

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

4шт.

Not part of seat assy.

1шт.

619856R1

WASHER

11/32 x 3/4 x 16 ga

4шт.

Not part of seat assy.

1шт.

120376

NUT,5/16"-18, G5

2шт.

Not part of seat assy.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Not part of seat assy.

1шт.

17

825198C1

RAIL

SLIDE, seat adjusting RH

1шт.

Not part of seat assy.

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

2шт.

120376

NUT,5/16"-18, G5

2шт.

Not part of seat assy.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Not part of seat assy.

1шт.

18

825199C91

SLIDE

seat adjusting LH

1шт.

Not part of seat assy.

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4'

2шт.

Not part of seat assy.

1шт.

120376

NUT,5/16"-18, G5

2шт.

Not part of seat assy.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Not part of seat assy.

1шт.

19

825711C1

ANGLE, seat support

2шт.

Not part of seat assy.

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

4шт.

Not part of seat assy.

1шт.

120376

NUT,5/16"-18, G5

4шт.

Not part of seat assy.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Not part of seat assy.

1шт.
