Артикул
Название
Примечание
Количество

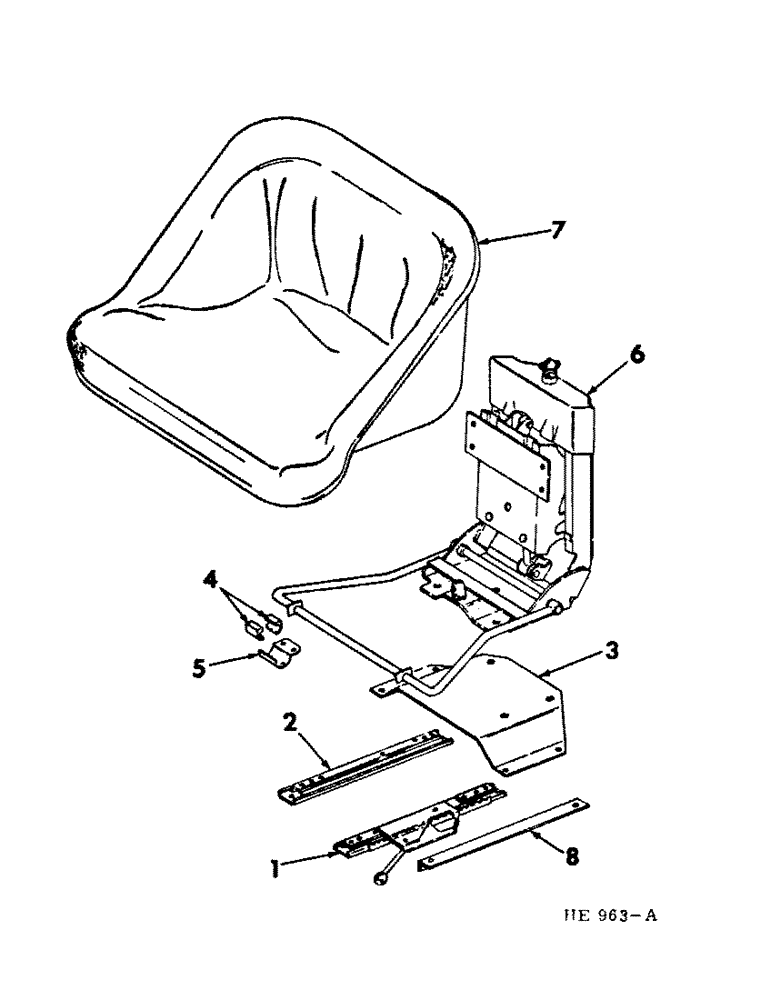

1
825199C91
SLIDE
seat adj LH
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4"
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
2
825198C1
RAIL
SLIDE, seat RH
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4"
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
3
825200C1
SUPPORT, seat
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4"
4шт.
120376
NUT,5/16"-18, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
4
825203C1
BUSHING
BEARING, seat retainer half
4шт.
5
825204C1
RETAINER
CLIP, bearing retainer
2шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
6
825201C91
SUSPENSION ASSY, seat (for service parts refer to "Seat Suspension")
1шт.
9635884
BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5
5/16 x 1"
4шт.
120376
NUT,5/16"-18, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
7
825202C91
SEAT, operator's
1шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
8
825711C1
ANGLE, seat support
2шт.
Выбрано товаров: 24
