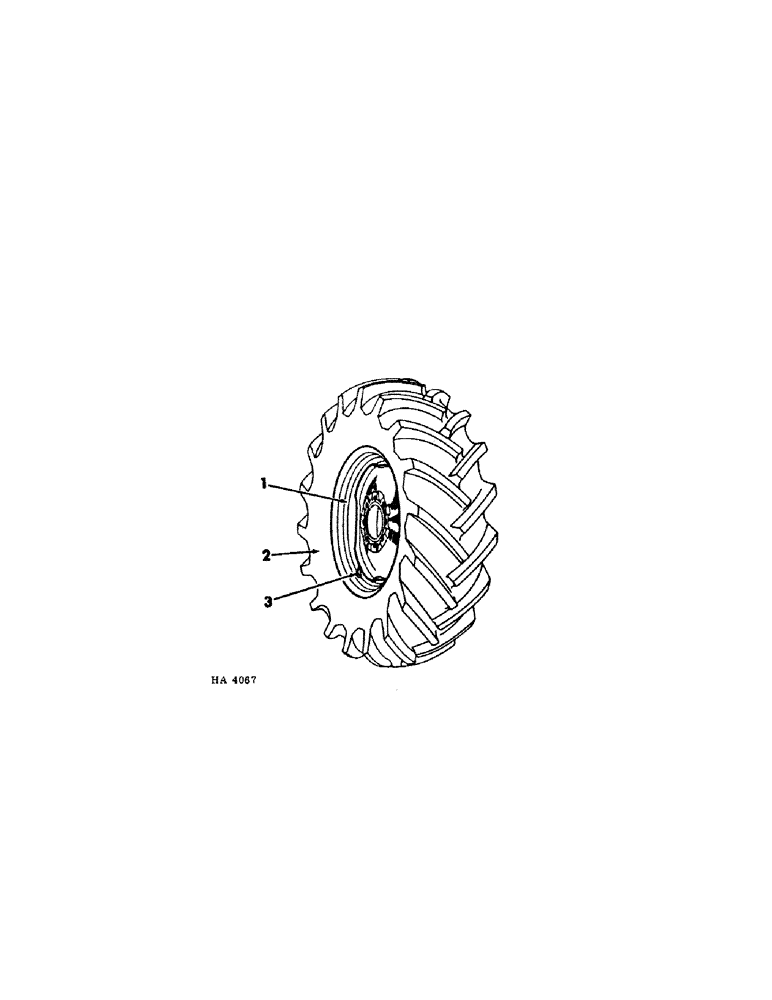

Запчасти Case IH 230 (15-2) - WHEELS AND TRACTION, MAIN WHEEL AND TIRES Wheels & Traction

1

825747C1

WHEEL, W10B-20 main (opt to use 2-825746C1, wheel)

2шт.

1

825746C1

WHEEL, 16.1 x 14 LB main (opt to use 2-825747C1, wheel)

2шт.

554480R1

WHEEL NUT

5/8" NF, wheel

16шт.

2

TIRE, 12.5L-20 4 ply tubeless agriculture (Code I-3 open center shown) (for use w/825747C1 wheel)

2шт.

2

TIRE, 16.5L-16.1 6 ply tubeless agriculture (Code R-3 open center) (for use w/825746C1, wheel)

2шт.

3

387897R91

VALVE STEM

VALVE, TR-415 tubeless tire

2шт.
