(15-2[B]) - WHEELS AND TRACTION, WHEEL - REAR (DUAL CASTER)

Запчасти Case IH 230 (15-2[B]) - WHEELS AND TRACTION, WHEEL - REAR (DUAL CASTER) Wheels & Traction

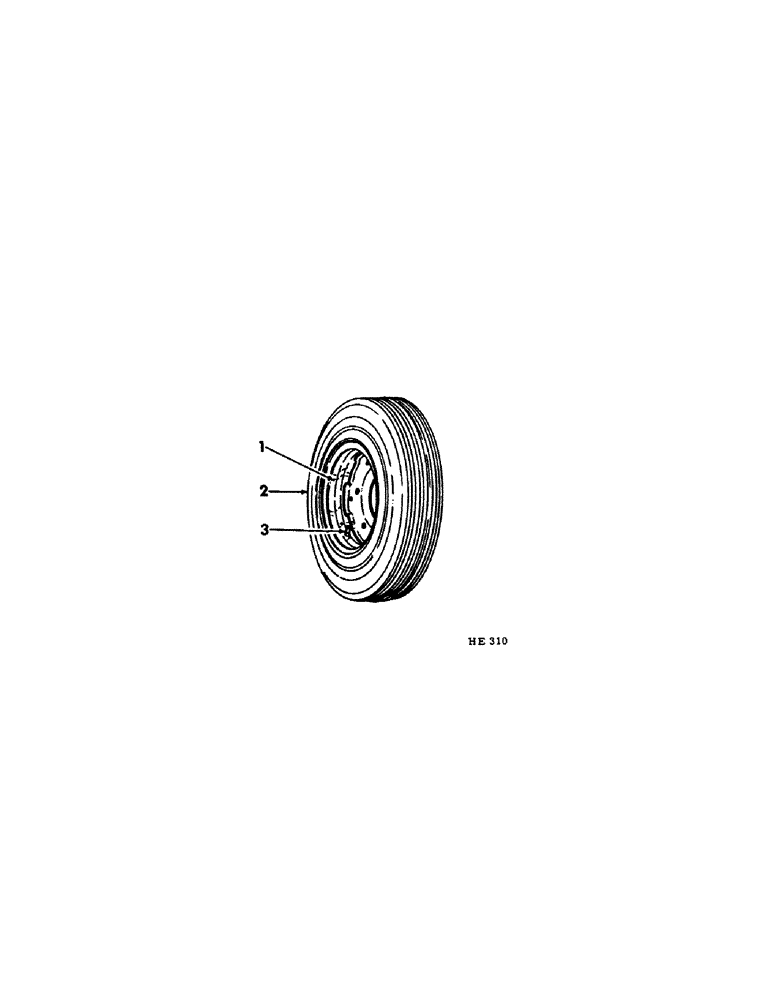

Схема запчастей Case IH 230 - (15-2[B]) - WHEELS AND TRACTION, WHEEL - REAR (DUAL CASTER) Wheels & Traction
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

622192R91

WHEEL

DISK AND RIM, 15 x 5 KM caster wheel

2шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

wheel

12шт.

2

TIRE, caster wheel tubeless (6.70-15 4 ply rib implement) (Code I-1)

2шт.

3

387897R91

VALVE STEM

VALVE, TR-415 tubeless tire

2шт.
