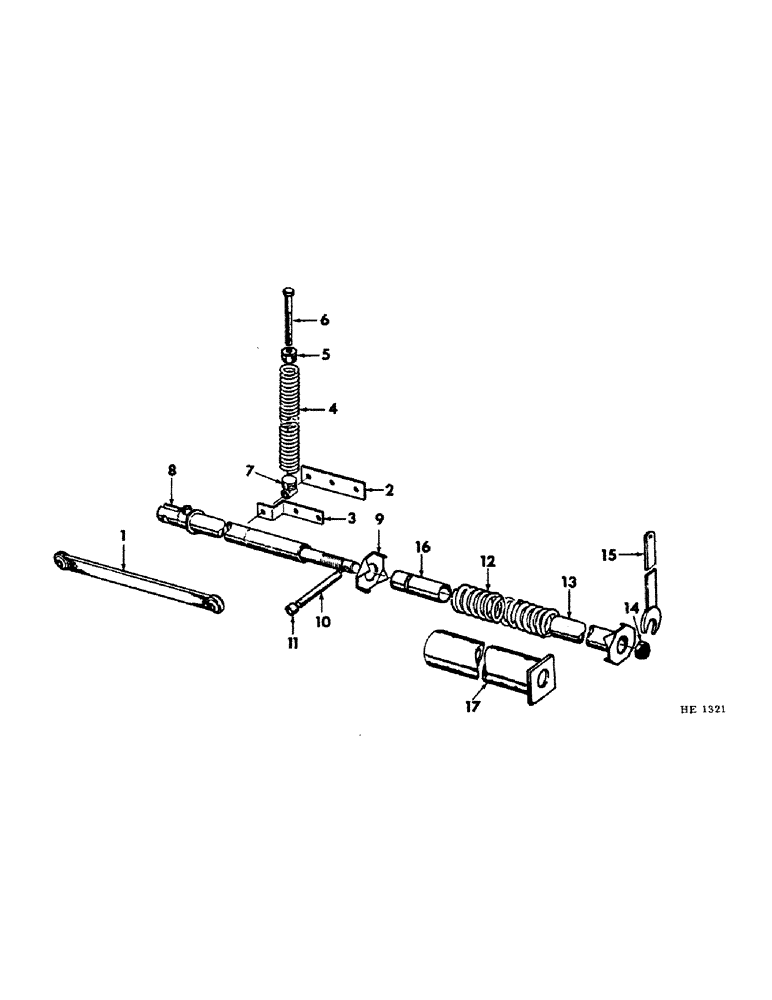

Запчасти Case IH 230 (14-2) - SUSPENSION, PLATFORM LIFT CYLINDER AND STABILIZERS Suspension

1

824983C1

BAR, stabilizer RH

1шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

3/4 x 4" , Course threads

2шт.

619505R1

WASHER

25/32 x 2 x 11 ga

5шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

2

826191C1

BAR, spring LH lower (not 19-1/2')

1шт.

2

825343C1

BAR, spring LH lower (19-1/2')

1шт.

3

825343C1

SUPPORT, stabilizer spring LH lower

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

596191R1

SPRING

stabilizer LH (not 19-1/2')

1шт.

4

591546R1

SPRING

stabilizer RH (19-1/2')

1шт.

5

596192R1

PLUG

spring upper LH

1шт.

6

826199C1

BOLT,Adj, Hex, 5/8" - 11 x 6.50"

spring adjusting LH (not 19-1/2')

1шт.

6

829663C1

BOLT, spring adjusting LH (19-1/2')

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

7

591544R1

PLUG

spring lower LH

1шт.

LC175

PIN

1/2 x 2-1/2" std-hd-dld (not 19-1/2')

1шт.

21994R1

HEADED PIN,1/2" x 3 1/4"

PIN, 1/2 x 3-1/4" std-hd-dld (19-1/2')

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

8

825621C91

CYLINDER ASSY, platform lift (for service parts refer to 2 "Cylinder - Platform Lift" Group 10)

2шт.

580714R1

HEADED PIN,1" x 2 3/4"

PIN, 1 x 2-3/4" std-hd-dld

2шт.

614451R1

WASHER

1-1/32 x 1-1/34 x 11 ga

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

9

824967C1

CLAMP, cylinder spring

2шт.

10

826178C1

SHAFT, cylinder front mounting

2шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga

4шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

11

355682R1

SPACER,3/4" Pipe x 3/4"

shaft

2шт.

12

826173C1

SPRING, cylinder

2шт.

13

826184C1

ADJUSTER, spring (prior to serial no. 1188) (for service order 1- 826129C1 tube)

2шт.

14

425-1024

NUT,1 1/2"-6, G5

1-1/2" hex.

2шт.

15

826181C1

WRENCH, spring adjusting

1шт.

16

825387C1

EXTENSION, lift cylinder (prior to serial no. 1188)

2шт.

17

826129C1

TUBE, spring guide (serial no. 1188 and since)

2шт.
