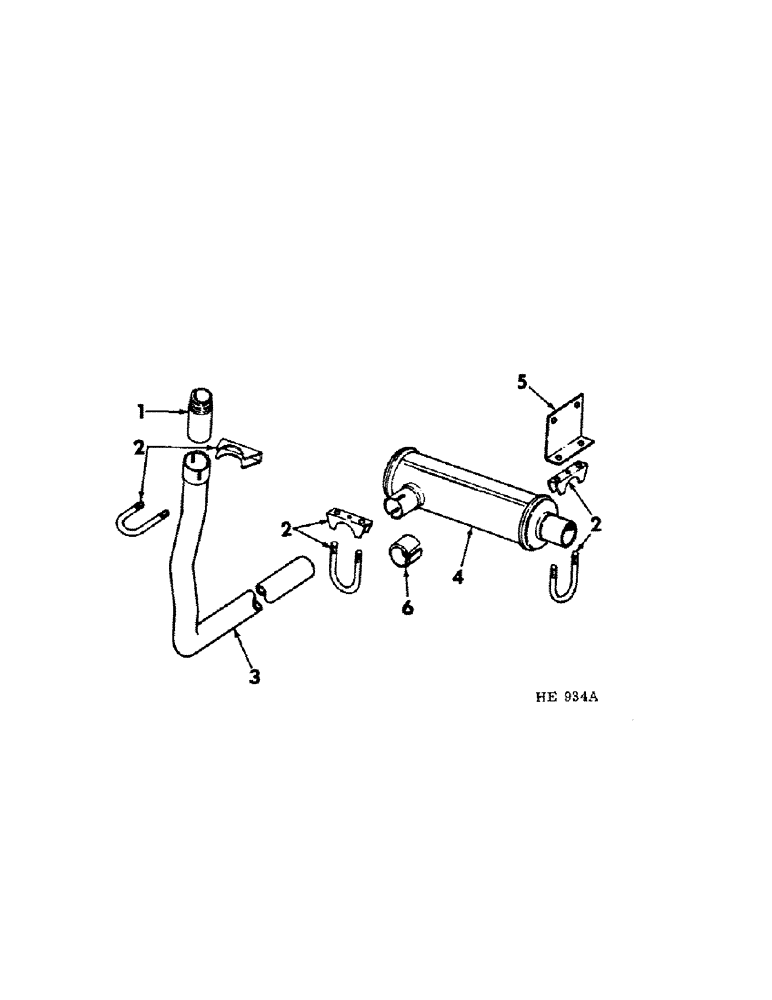

Запчасти Case IH 230 (12-7[A]) - POWER, EXHAUST MUFFLER AND PIPE Power

1

610872R1

PIPE

NIPPLE, exhaust

1шт.

2

170572R91

CLAMP

ASSY, exhaust composed of: (1) saddle (NSS), (1) u-bolt (NSS), (2) nut 120368, (2) washer 120214

3шт.

120368

NUT,5/16"-24, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

599908R2

PIPE

exhaust

1шт.

4

609924R91

MUFFLER

w/o spark arrester exhaust (for service order 1- 829640C91 muffler and 1-611437R1 spacer)

1шт.

4

829640C91

MUFFLER

w/spark arrester exhaust includes 1-444578 plug

1шт.

444578

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

PLUG, 1/4 NPT

1шт.

5

599909R1

SUPPORT, rear muffler clamp

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

611437R1

SPACER

muffler (for use w/829640C91 muffler)

1шт.
