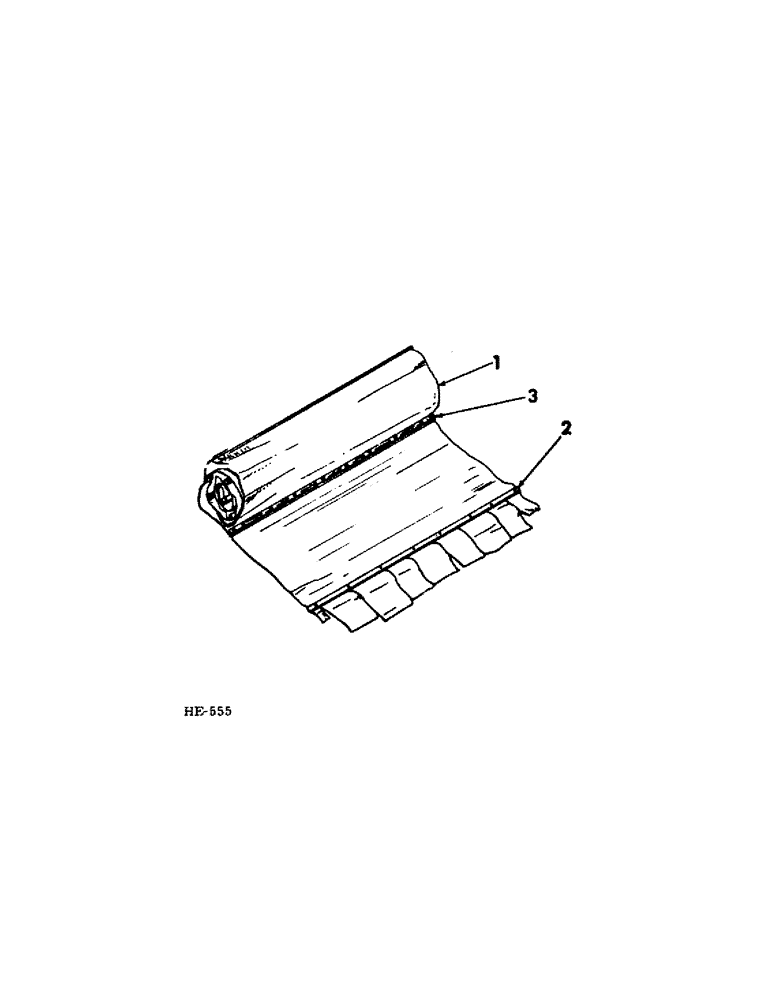

Запчасти Case IH 230 (16-23) - PLATFORM, PLATFORM SELF-CLEANING NARROW APRONS (NYLON MATERIAL OPT W/#5 COTTON DUCK MATERIAL) Platform

1

827594C91

APRON

ASSY, 10-1/2 ft

2шт.

Apron includes parts listed below. Amounts used varies with size of platform.

1шт.

1

827595C91

APRON

ASSY, 12-1/2 ft

2шт.

Apron includes parts listed below. Amounts used varies with size of platform.

1шт.

1

827597C91

APRON

ASSY, 14-1/2 ft

2шт.

Apron includes parts listed below. Amounts used varies with size of platform.

1шт.

1

827598C91

APRON ASSY, 16-1/2 ft

2шт.

Apron includes parts listed below. Amounts used varies with size of platform.

1шт.

2

609955R11

BAR

ASSY, connecting (includes screws, nuts & washers)

1шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

#10-32 x 1-1/4" rd-hd SLTD

9шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

9шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

9шт.

3

609954R3

SLAT

apron

1шт.

451312R1

STAPLE

double pointed

1шт.

Q3569

RIVET,Csk, 3/16" x 9/16"

.186 x 9/16" tub

1шт.

20319R1

RIVET

.186 x 1/2" tub

1шт.
