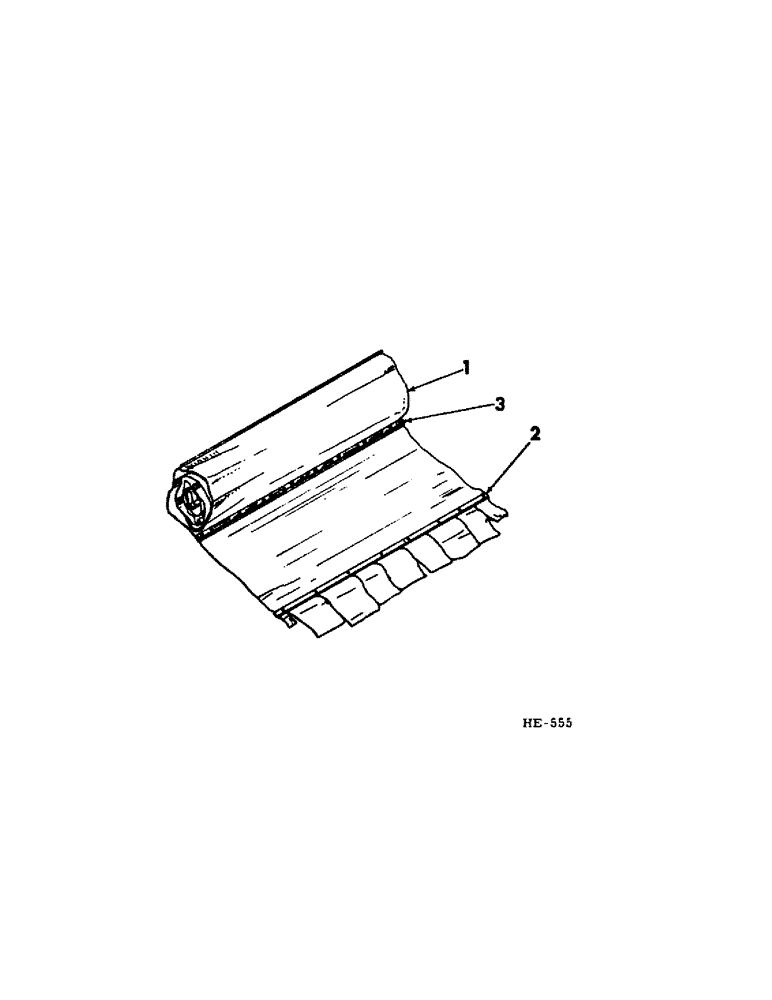

Запчасти Case IH 230 (16-23[A]) - PLATFORM, PLATFORM CANVAS WIDE APRONS (NYLON MATERIAL OPT W/#5 COTTON DUCK MATERIAL) Platform

1

829602C91

APRON

ASSY (12-1/2 ft)

2шт.

Apron includes parts listed below. Amounts used varies with size of platform.

1шт.

1

829604C91

APRON

ASSY (14-1/2 ft)

2шт.

Apron includes parts listed below. Amounts used varies with size of platform.

1шт.

1

829605C91

APRON

ASSY (16-1/2 ft)

2шт.

Apron includes parts listed below. Amounts used varies with size of platform.

1шт.

1

829606C91

APRON

ASSY (19-1/2 ft)

2шт.

Apron includes parts listed below. Amounts used varies with size of platform.

1шт.

2

612288R21

BAR ASSY.

BAR ASSY, clamping (includes screws, nuts & washers)

1шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

#10-32 x 1-1/4" rd-hd SLTD

9шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

9шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

9шт.

3

618633R3

SLAT

apron

1шт.

451312R1

STAPLE

double pointed

1шт.

Q3569

RIVET,Csk, 3/16" x 9/16"

.186 x 9/16" tub

1шт.

20319R1

RIVET

.186 x 1/2" tub

1шт.
