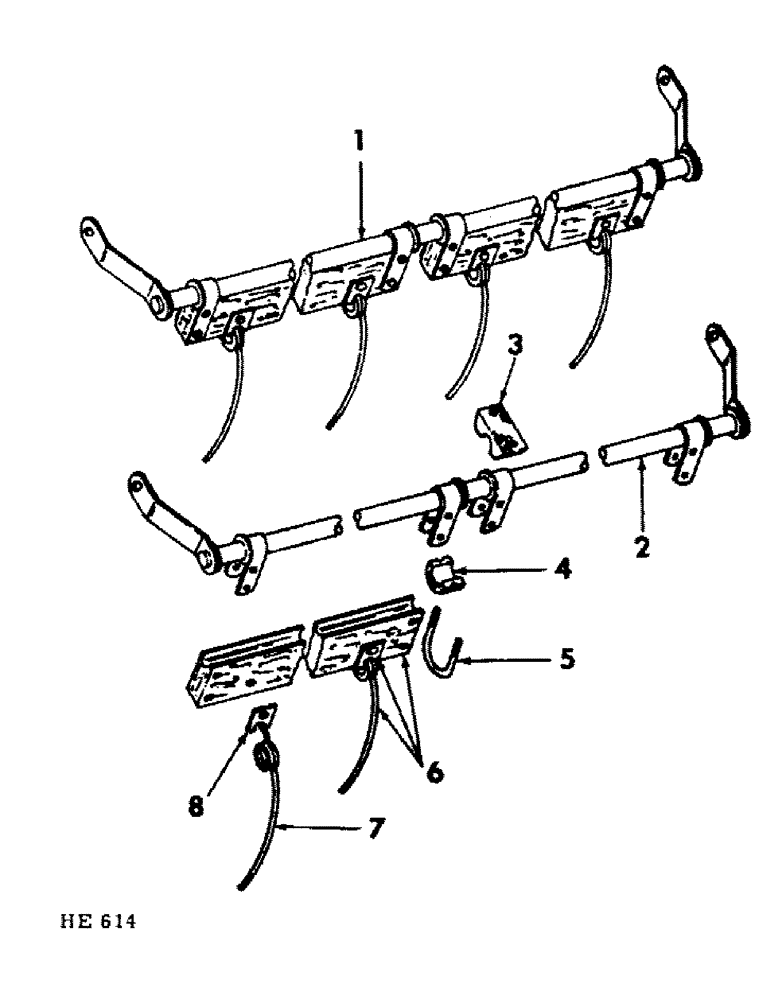

Запчасти Case IH 230 (16-20) - PLATFORM, PICK-UP REEL BATSHAFT AND BAT Platform

1

598221R91

BAT

ASSY, 10-1/2 ft platform reel composed of: (1) batshaft 598222R1, (2) bat assy 598223R91, (16) bolt 598798R1, (16) nut 378531R1

4шт.

1

598224R91

BAT

ASSY, 12-1/2 ft platform reel composed of: (1) batshaft 598225R1, (2) bat assy 598226R91, (16) bolt 598798R1, (16) nut 378531R1

5шт.

1

598227R91

BAT

ASSY, 14-1/2 ft platform reel composed of: (1) batshat 598228R1, (2) assy 598189R91, (1) bat assy 598229R91, (24) bolt 598798R1, (24) bolt 378531R1

5шт.

1

598230R91

BAT

ASSY, 16-1/2 ft platform reel composed of: (1) batshaft 598231R1, (2) bat assy 598233R91, (1) bat assy 598232R91, (24) bolt 598798R1, (24) nut 378531R1

5шт.

2

598222R1

SHAFT

BATSHAFT, 10-1/2 ft platform reel

4шт.

2

598225R1

SHAFT

BATSHAFT, 12-1/2 ft platform reel

5шт.

598228R1

SHAFT

BATSHAFT, 14-1/2 ft platform reel

5шт.

598231R1

SHAFT

BATSHAFT, 16-1/2 ft platform reel

5шт.

3

598234R1

BASE

BEARING, reel bat inner half (12 used 10-1/2 ft) (15 used 12-1/2 ft) (15 used 12-1/2 ft) (20 used 14-1/2 ft & 16-1/2 ft)

1шт.

4

598235R1

BEARING CAP,1.025"

BEARING, reel bat outer half (12 used 10-1/2 ft) (15 used 12-1/2 ft) (20 used 14-1/2 ft & 16-1/2 ft)

1шт.

5

598236R1

U-BOLT,U, 1/4" - 20

brg clamping (12 used 10-1/2 ft) (15 used 12-1/2 ft) (20 used 14-1/2 ft & 16-1/2 ft)

1шт.

231-4144

NUT,1/4"-20, GB

LK-NUT, 1/4" type HL (2 per bolt)

1шт.

6

598223R91

BAT

ASSY, 10-1/2 ft platform reel batshaft composed of: (12) tine 598171R1, (12) clip 592616R1, (12) rivet 20901R1

8шт.

20901R1

RIVET

3/16 x 1" ov-hd semi-tubular

96шт.

598798R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/2", Gr 5

BOLT, 1/4 x 1-1/2" crg

64шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4"

64шт.

6

598226R91

BAT

ASSY, 12-1/2 ft platform reel batshaft composed of: (14) tine 598171R1, (14) clip 592616R1, (14) rivet 20901R1

10шт.

20901R1

RIVET

3/16 x 1" ov-hd semi-tubular

140шт.

598798R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/2", Gr 5

BOLT, 1/4 x 1-1/2" crg

80шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4"

80шт.

6

598229R91

BAT

ASSY, 14-1/2 ft platform reel batshaft inner composed of (12) tine 598171R1, (12) clip 592616R1, (12) rivet 20901R1

5шт.

20901R1

RIVET

3/16 x 1" ov-hd semi-tubular

60шт.

598798R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/2", Gr 5

BOLT, 1/4 x 1-1/2" crg

40шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4"

40шт.

6

598189R91

BAT

ASSY, 14-1/2 ft platform reel batshaft outer composed of (11) tine 598171R1, (11) clip 592616R1, (11) rivet 20901R1

10шт.

20901R1

RIVET

3/16 x 1" ov-hd semi-tubular

110шт.

598798R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/2", Gr 5

BOLT, 1/4 x 1-1/2" crg

80шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4"

80шт.

6

598232R91

BAT

ASSY, 16-1/2 ft platform reel batshaft inner composed of (12) tine 598171R1, (12) clip 592616R1, (12) rivet 20901R1

5шт.

20901R1

RIVET

3/16 x 1" ov-hd semi-tubular

60шт.

598798R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/2", Gr 5

BOLT, 1/4 x 1-1/2" crg

40шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4"

40шт.

6

598233R91

BAT

ASSY, 16-1/2 ft platform reel batshaft outer composed of (13) tine 598171R1, (13) clip 592616R1, (13) rivet 20901R1

10шт.

20901R1

RIVET

3/16 x 1" ov-hd semi-tubular

130шт.

598798R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/2", Gr 5

BOLT, 1/4 x 1-1/2" crg

80шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-WASHER, 1/4"

80шт.

7

598171R1

TINE,Coiled, 1 Prong, 283mm L

bat (96 used 10-1/2 ft) (140 used 12-1/2 ft) (170 used 14-1/2 ft) (190 used 16-1/2 ft)

1шт.

8

592616R1

CLIP

bat tine (1 per tine)

1шт.

20901R1

RIVET

3/16 x 1" ov-hd semi-tubular (1 per clip)

1шт.
