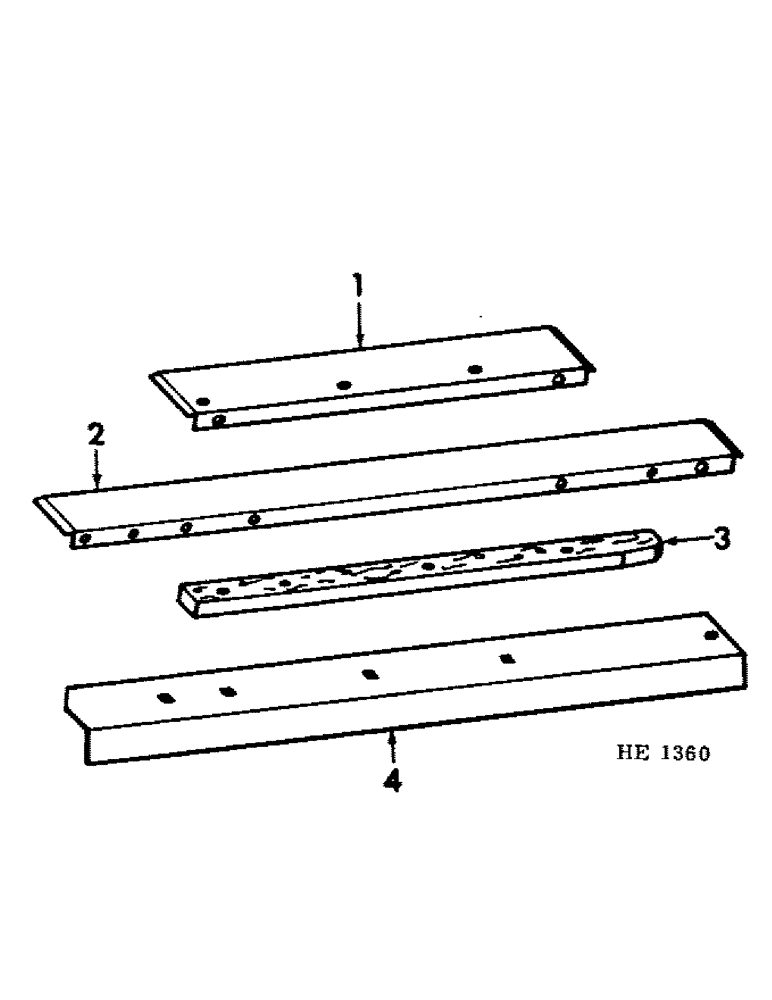

Запчасти Case IH 230 (16-15) - PLATFORM, APRON GUIDES AND SHIELDS, (FOR NARROW AND WIDE CANVAS APRONS) Platform

1

824733C1

SUPPORT, apron front LH shown 10-1/2 ft (narrow)

1шт.

1

824792C1

SUPPORT, apron front RH 10-1/2 ft (narrow)

1шт.

1

824737C1

SUPPORT, apron front LH 12-1/2 ft (narrow)

1шт.

1

824793C1

SUPPORT, apron front RH 12-1/2 ft (narrow)

1шт.

1

824741C1

SUPPORT, apron front LH 14-1/2 ft (narrow)

1шт.

1

824794C1

SUPPORT, apron front RH 14-1/2 ft (narrow)

1шт.

1

824795C1

SUPPORT, apron front LH 16-1/2 ft (narrow)

1шт.

1

824796C1

SUPPORT, apron front RH 16-1/2 ft (narrow)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4" (4, 10-1/2 ft) (6, 12-1/2 ft) (10, 14-1/2 ft) (12, 16-1/2 ft)

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 per bolt) 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

2

824569C1

ANGLE

apron front support LH shown 12-1/2 ft (wide)

1шт.

2

824570C1

ANGLE

apron front support RH 12-1/2 ft (wide)

1шт.

2

824659C1

ANGLE

apron front support LH 14-1/2 ft (wide)

1шт.

2

824660C1

ANGLE

apron front support RH 14-1/2 ft (wide)

1шт.

2

824571C1

ANGLE

apron front support LH 16-1/2 ft (wide)

1шт.

2

824572C1

ANGLE

apron front support RH 16-1/2 ft (wide)

1шт.

2

824661C1

ANGLE

apron front support LH 19-1/2 ft (wide)

1шт.

2

824662C1

ANGLE

apron front support RH 19-1/2 ft (wide)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4" (6, 12-1/2 ft) (8, 14-12 ft) (10, 16-1/2 ft) (12, 19-1/2 ft)

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

3

824730C1

RUNNER, apron front 10-1/2 ft (narrow)

2шт.

824734C1

RUNNER

apron front 12-1/2 ft (narrow)

2шт.

824738C1

RUNNER, apron front 14-1/2 ft (narrow)

2шт.

824786C1

RUNNER, apron front 16-1/2 ft (narrow)

1шт.

4

824731C1

SHIELD, apron LH shown 10-1/2 ft (narrow)

1шт.

4

824732C1

SHIELD, apron RH 10-1/2 ft (narrow)

1шт.

4

824735C1

SHIELD, apron LH 12-1/2 ft (narrow)

1шт.

4

824736C1

SHIELD, apron RH 12-1/2 ft (narrow)

1шт.

4

824739C1

SHIELD, apron LH 14-1/2 ft (narrow)

1шт.

4

824740C1

SHIELD, apron RH 14-1/2 ft (narrow)

1шт.

4

824788C1

SHIELD, apron LH 16-1/2 ft (narrow)

1шт.

4

824789C1

SHIELD, apron RH 16-1/2 ft (narrow)

1шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, 5/16 x 1-1/2" crg (8, 10-1/2 ft) (10, 12-1/2 ft) (12, 14-1/2 ft) (14, 16-1/2 ft)

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga

2шт.

120376

NUT,5/16"-18, G5

(1 per bolt) 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, (6, 10-1/2 ft) (8, 12-1/2 ft) (10, 14-1/2 ft) (12, 16-1/2 ft) 5/16"

1шт.
