Запчасти Case IH 230 (16-09) - PLATFORM, CONVEYOR IDLER ROLLERS AND TIGHTENER Platform

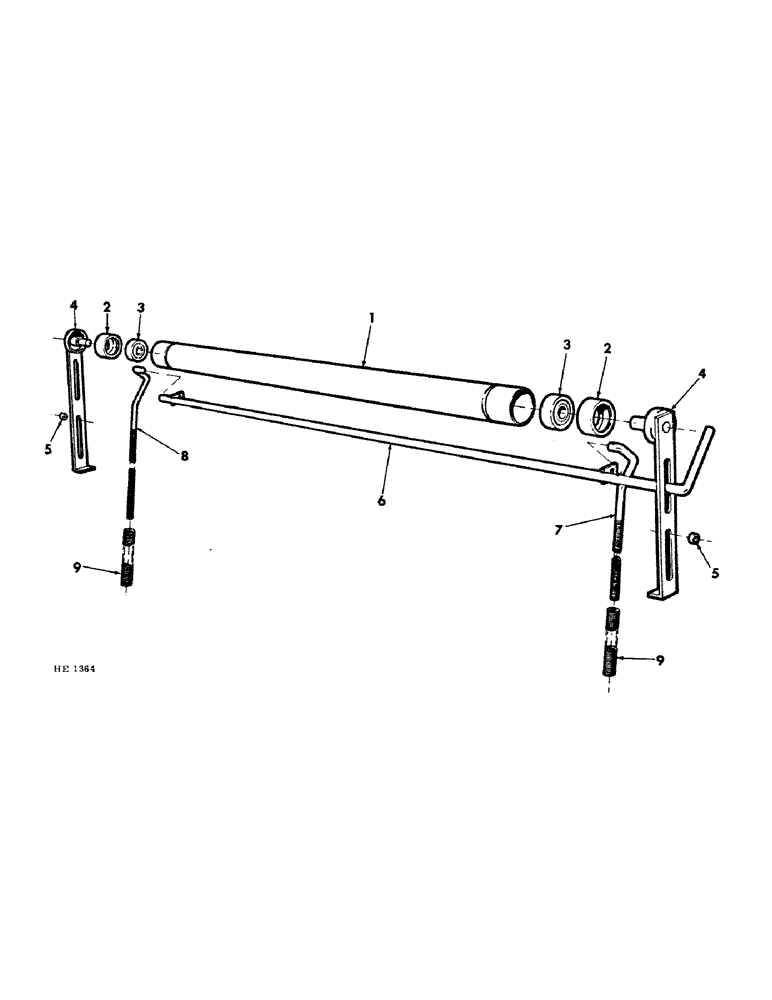

Схема запчастей Case IH 230 - (16-09) - PLATFORM, CONVEYOR IDLER ROLLERS AND TIGHTENER Platform

Артикул

Название

Примечание

Количество

1

592147R1

TUBE,2.25" OD, 40.94" Length

idler roller

2шт.

2

592142R1

RETAINER

idler roller rubber

4шт.

3

608130R91

BALL BEARING,0.7874" ID x 1.8504" OD x 0.5512"

idler roller

4шт.

4

824565C1

SUPPORT

idler roller adjusting

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga

4шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

824574C1

BUSHING

idler roller support

4шт.

6

824560C1

ROD

idler roller adjusting

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

7

824558C1

ROD

roller tightener LH front and RH rear

2шт.

8

824596C1

ROD

roller tightener RH front and LH rear

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga

8шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

8шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

9

17460K

SPRING

tightener

4шт.

Выбрано товаров: 18
