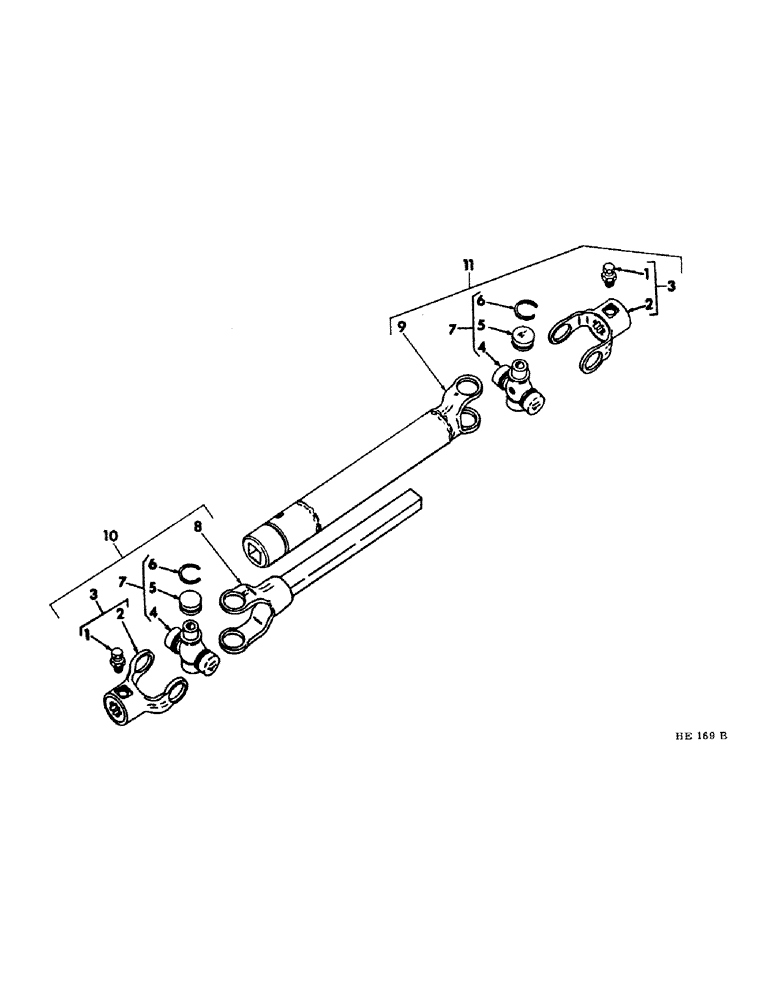

Запчасти Case IH 230 (16-06) - PLATFORM, PLATFORM UNIVERSAL (HAYES) Platform

1

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, 1/2", NF x 1-3/16" sp-hd cone-pt set

2шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2", NF jam

2шт.

2

YOKE, front & rear (for service order 1-613884R11, yoke assy) (NSS)

2шт.

3

613884R11

YOKE ASSY, front & rear (includes 1-38904K, screw and 1-124934, nut)

2шт.

4

CROSS, universal center (for service order 1-208959R91, cross assy) (NSS)

2шт.

17238R1

LUB-FITTING, 1/4"-65deg.

2шт.

5

BEARING, center cross needle (for service order 1-208959R91, cross assy) (NSS)

8шт.

6

613469R1

RING

bearing snap

8шт.

7

208959R91

KIT

CROSS ASSY, center composed of: (1) cross (NSS), (4) bearing (NSS), (4) ring 613469R1, (1) fitting 17238R1

2шт.

8

823049C1

YOKE AND BAR, universal

1шт.

9

823048C1

YOKE AND TUBE, universal

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

10

823047C91

JOINT ASSY, universal bar half composed of: (1) yoke & bar 823049C1, (1) cross assy 208959R91, (1) yoke assy 613884R11

1шт.

11

823046C91

JOINT ASSY, universal tube half composed of: (1) yoke & tube 823048C1, (1) cross assy 208959R91, (1) yoke assy 613884R11, (1) fitting 109454

1шт.
