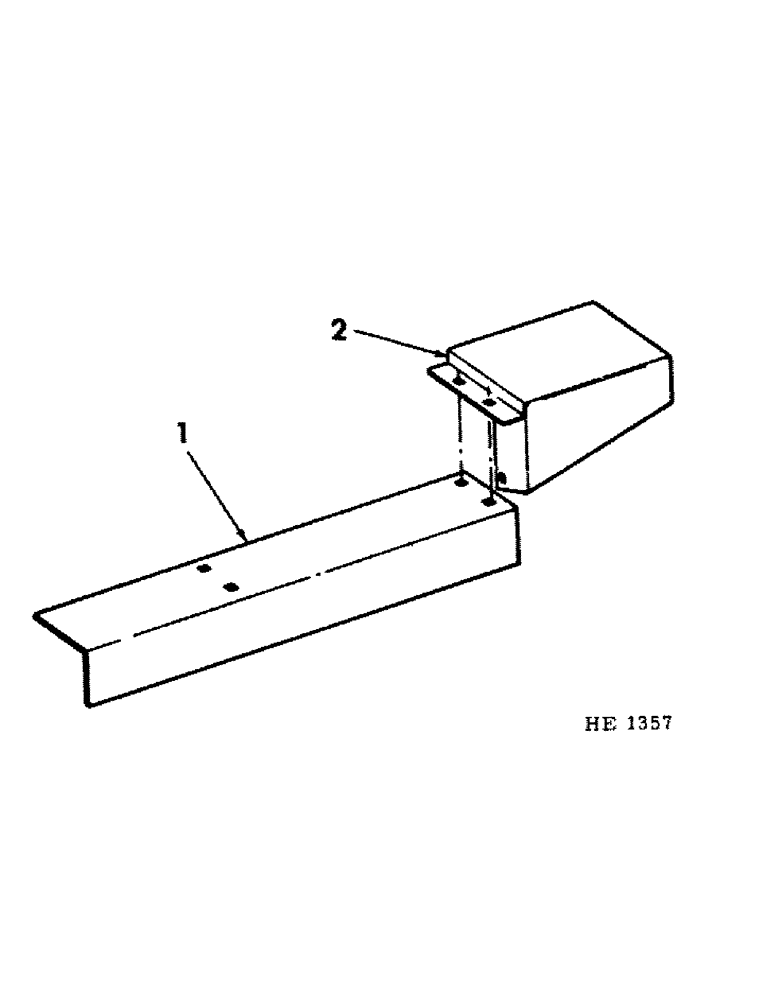

Запчасти Case IH 230 (16-05) - PLATFORM, PLATFORM DRIVE AND UNIVERSAL SHIELDS Platform

1

826141C1

ANGLE, drive shaft shield 12-1/2 ft.

1шт.

1

826142C1

ANGLE, drive shaft shield 14-1/2 ft.

1шт.

1

826143C1

ANGLE, drive shaft shield 16-1/2 ft.

1шт.

1

826144C1

ANGLE, drive shaft shield 19-1/2 ft.

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

826218C1

SHIELD, universal joint

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
