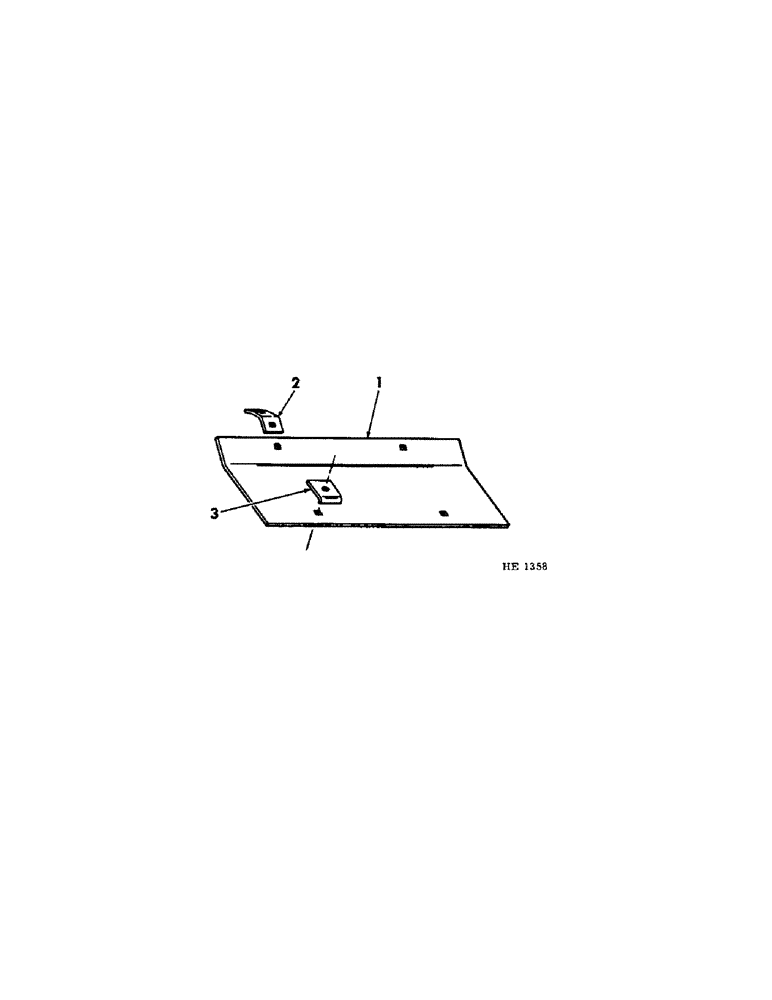

Запчасти Case IH 230 (16-02[A]) - PLATFORM, SKID SHOE Platform

1

824783C1

SOLE

skid shoe

1шт.

2

824784C1

SUPPORT

skid shoe

2шт.

18698R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 2

BOLT, 7/16 x 2" type 1 crg

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

271501

SOCKET

NUT, 7/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

824785C1

CLAMP

sole support

2шт.

466971R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT, 1/2 x 2" crg

2шт.

22191R1

WASHER

17/32 x 1-3/4 x 7 ga

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.
