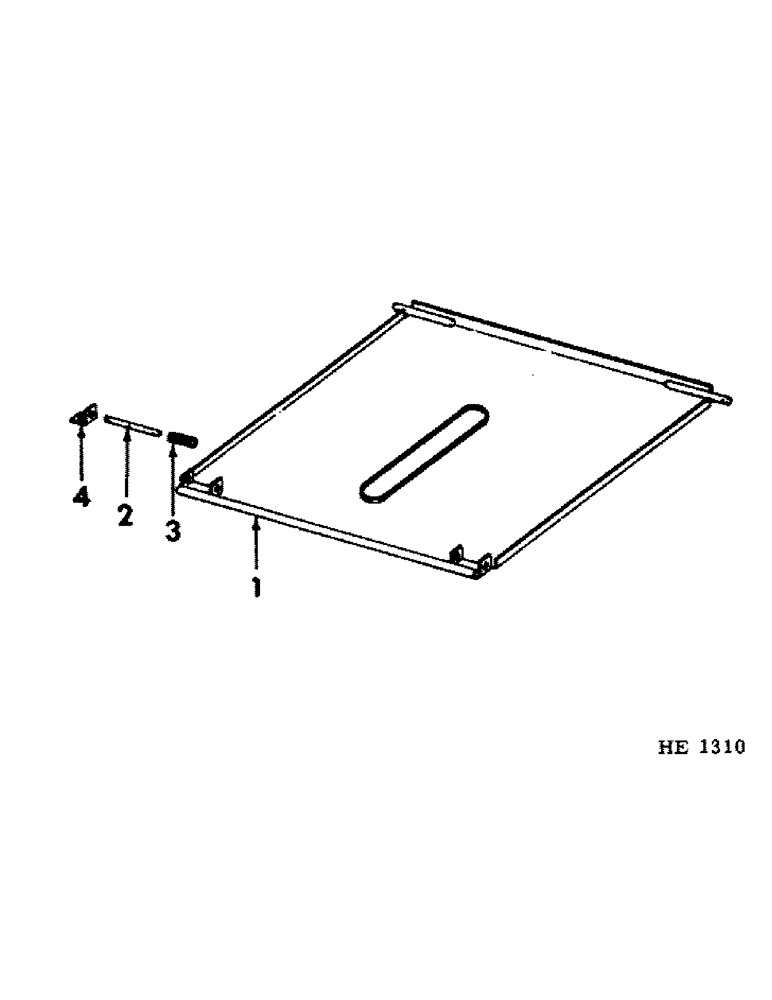

Запчасти Case IH 230 (17-09) - MOUNTED EQUIPMENT, DRIVE GUARD SHIELD, (NOT APPLICABLE WITH MACHINES EQUIPPED WITH HAY CONDITIONER) Mounted Equipment

1

825176C1

GUARD, chassis pan

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

2

592437R1

PIN, guard support lock

2шт.

19711R1

PIN,3.17mm OD x 31.75mm L, Coiled

2шт.

19938R1

PIN,1/8" x 7/8", Coiled

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga

2шт.

3

M296

SPRING

lock pin

2шт.

4

592438R1

ANGLE, lock pin

2шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16 x 7/8"

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
