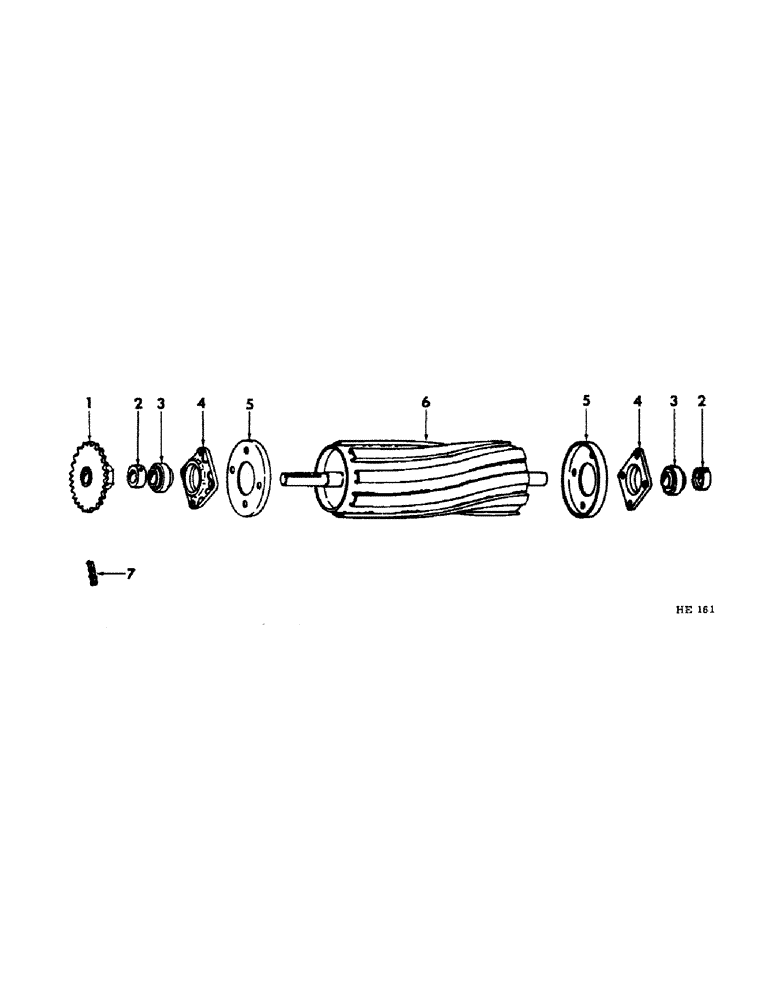

Запчасти Case IH 230 (17-07) - MOUNTED EQUIPMENT, CONDITIONER LOWER STEEL ROLL ASSEMBLY Mounted Equipment

1

595927R91

SPROCKET ASSY.

SPROCKET, 29T lower roll drive

1шт.

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 1-1/2" gib-hd

1шт.

2

517645R11

COLLAR

W/SCREW, bearing locking

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

3

611583R91

BALL BEARING

BEARING, lower roll

2шт.

4

607332R1

HOUSING

lower roll bearing

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

5

607333R11

SHROUD, lower roll

2шт.

6

596401R2

ROLL

lower steel

1шт.

7

CHAIN, drive (for service refer to "conditioner drive")

1шт.
