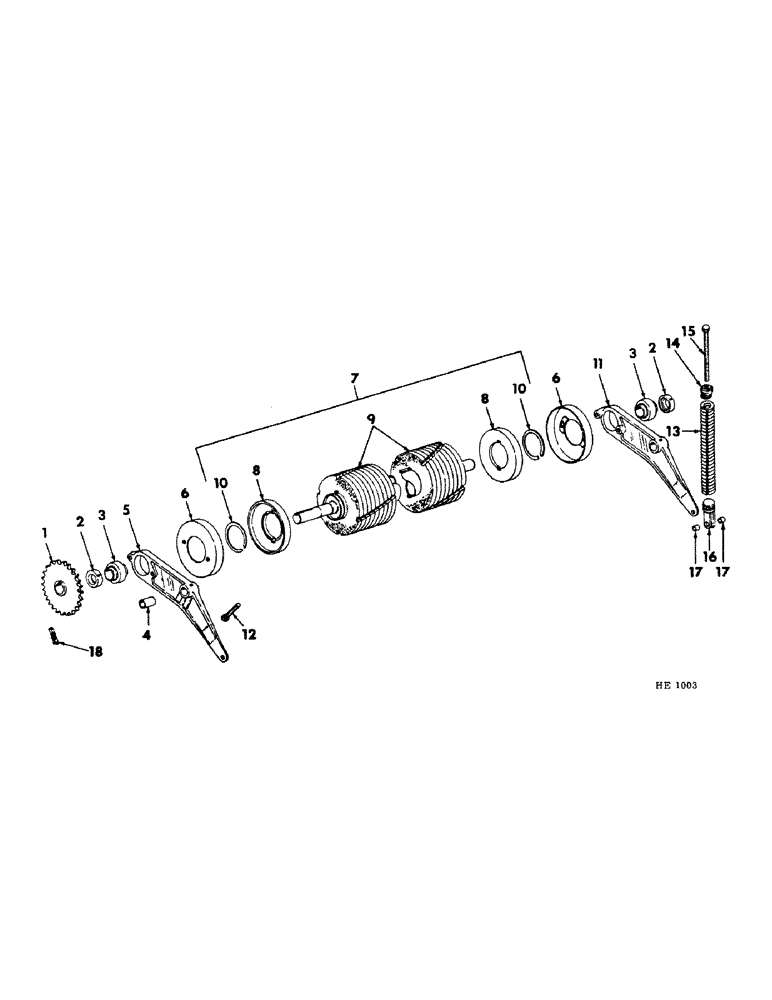

Запчасти Case IH 230 (17-06) - MOUNTED EQUIPMENT, CONDITIONER UPPER RUBBER ROLL ASSEMBLY Mounted Equipment
№
Артикул
Название
Примечание
Количество
1
595927R91
SPROCKET ASSY.
SPROCKET, 29T upper roll drive
1шт.
Q3947
KEY,Gib, 3/8" Sq x 1 1/2"
3/8 x 1-1/2" gib-hd
1шт.
2
517645R11
COLLAR
W/SCREW, bearing locking
2шт.
3
611583R91
BALL BEARING
BEARING, upper roll
2шт.
4
593314R1
BUSHING
upper roll bearing housing
2шт.
5
599611R1
HOUSING, upper roll bearing LH
1шт.
332040
LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg
LUB-FITTING, 1/8-90 deg.
1шт.
598820R1
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5
BOLT, 5/8 x 2-1/2" crg
1шт.
464623R1
WASHER
21/32 x 1-1/2 x 11 ga
1шт.
443343
LK-NUT, 5/8"
1шт.
6
593312R11
SHROUD, upper roll
2шт.
180130
BOLT,Hex, 3/8" - 16 x 2", Gr 5
3/8 x 2"
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
7
598315R91
ROLL ASSY, conditioner rubber composed of: (2) cap 598317R1, (96) disk 598316R1, (2) ring 598318R1
1шт.
8
598317R1
CAP
roller end
2шт.
9
598316R1
DISC
DISK, conditioner rubber
96шт.
10
598318R1
RING, SNAP
RING, conditioner cap retaining
2шт.
11
599612R1
HOUSING, roll bearing RH
1шт.
332040
LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg
LUB-FITTING, 1/8-90 deg.
1шт.
598820R1
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5
BOLT, 5/8 x 2-1/2" crg
1шт.
464623R1
WASHER
21/32 x 1-1/2 x 11 ga
1шт.
443343
LK-NUT, 5/8"
1шт.
12
593295R1
BOLT
roll stop
2шт.
21434R1
NUT,5/8"-11, G8
5/8" type 8
2шт.
13
811112C1
SPRING
roll pressure
2шт.
14
PO2315
PLUG
spring
2шт.
15
671365R1
BOLT,Hex, 1/2" - 13 x 7"
spring adjusting
2шт.
178374R1
WASHER
17/32 x 1-1/4 x 16 ga
2шт.
120238
JAM NUT,Jam, 1/2"-13, G5
1/2"
2шт.
16
811111C1
PLUG
spring lower
2шт.
180130
BOLT,Hex, 3/8" - 16 x 2", Gr 5
3/8 x 2"
2шт.
619856R1
WASHER
13/32 x 1 x 16 ga
4шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
17
561277R1
SPACER,5/8" Tube x 1/2"
lower plug
4шт.
18
CHAIN, drive (for service parts refer to "conditioner drive")
1шт.
Выбрано товаров: 36
