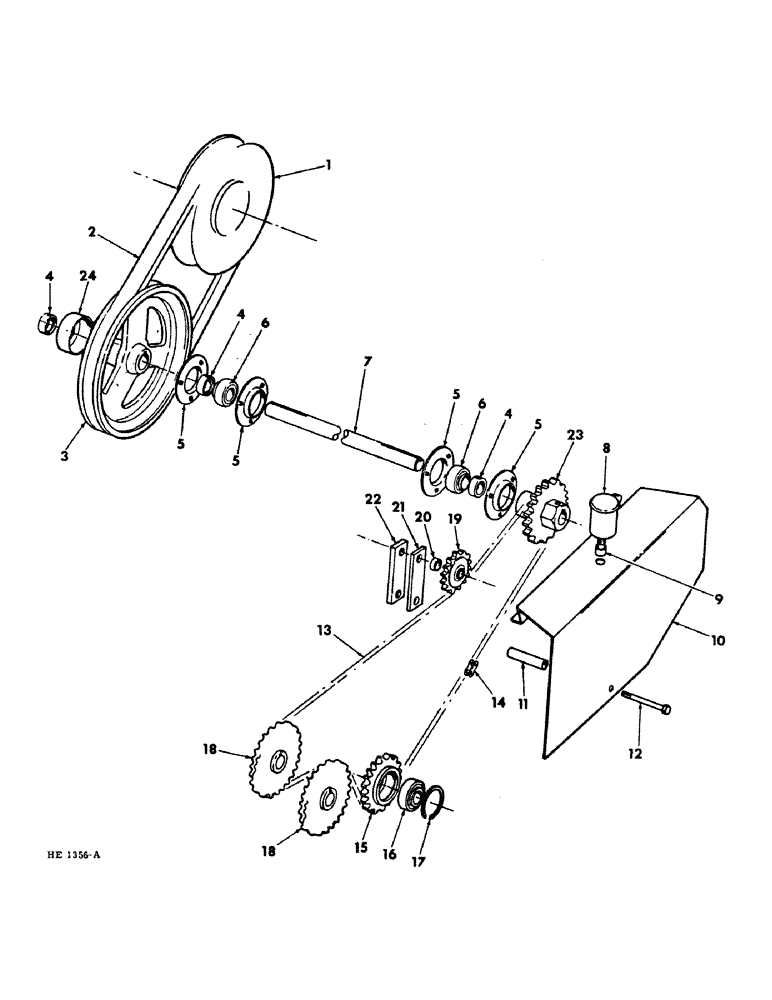

Запчасти Case IH 230 (17-04) - MOUNTED EQUIPMENT, CONDITIONER DRIE Mounted Equipment

1

595622R11

PULLEY

conditioner drive (for service parts refer to "chassis platform drive RH", for use with conditioner, group 7)

1шт.

2

824961C1

BELT,1.258" W x 70.50" L

Conditioner Drive 1.258" W x 70.50" L

1шт.

3

825170C1

PULLEY, jackshaft drive

1шт.

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2" gib-hd

1шт.

4

557117R11

COLLAR

COLLAR W/SCREW, bearing locking

3шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

3шт.

5

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, bearing

4шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

6

566634R91

BEARING

jackshaft

2шт.

7

824962C2

SHAFT, drive jack

1шт.

8

825352C1

OILER, wick feed drive chain

1шт.

119240

SPACER

NUT, 1/4" pipe lock

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

9

373080R1

SPACER,1/2" Pipe x 1/2"

1/2 x 1/2" oiler

1шт.

10

826253C1

SHIELD

main drive

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT, 1/4 x 1/2" crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

80438R1

SPACER,3/8" Pipe x 3"

shield

1шт.

12

191249

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

3/8 x 3-3/4" main drive shield

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

CHAIN ASSY, roll drive (for service order 1-611362R91 10 ft length of 3/4 pitch std roller chain, reduce to 133 links and add 1-611361R91, connecting link)

1шт.

14

611361R91

DRAG LINK

LINK, roll drive chain connecting

1шт.

15

593323R11

SPROCKET ASSY.

SPROCKET, 22T idler

1шт.

16

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, sprocket

1шт.

17

512889R1

RING

bearing retaining

1шт.

18

595927R91

SPROCKET ASSY.

SPROCKET, 29T upper and lower roll drive

2шт.

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 1-1/2" gib-hd

2шт.

19

825512C1

SPROCKET ASSY.

SPROCKET, 15T chain tightener

1шт.

20

611723R1

SPACER, sprocket

1шт.

21

826251C1

BAR, tightener sprocket outer

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3"

1шт.

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

5/8 x 1-1/4"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga (as req'd)

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

22

826250C1

BAR, tightener sprocket inner

1шт.

23

825736C1

SPROCKET ASSY.

SPROCKET, 23T jackshaft driven

1шт.

Q5023

KEY,5/16" Sq x 2 1/4", Par

5/16 sq x 2-1/4"

1шт.

617941R1

PIN,5/16" x 2", Coiled

1шт.

24

614547R1

WASHER

CUP, protective

1шт.
