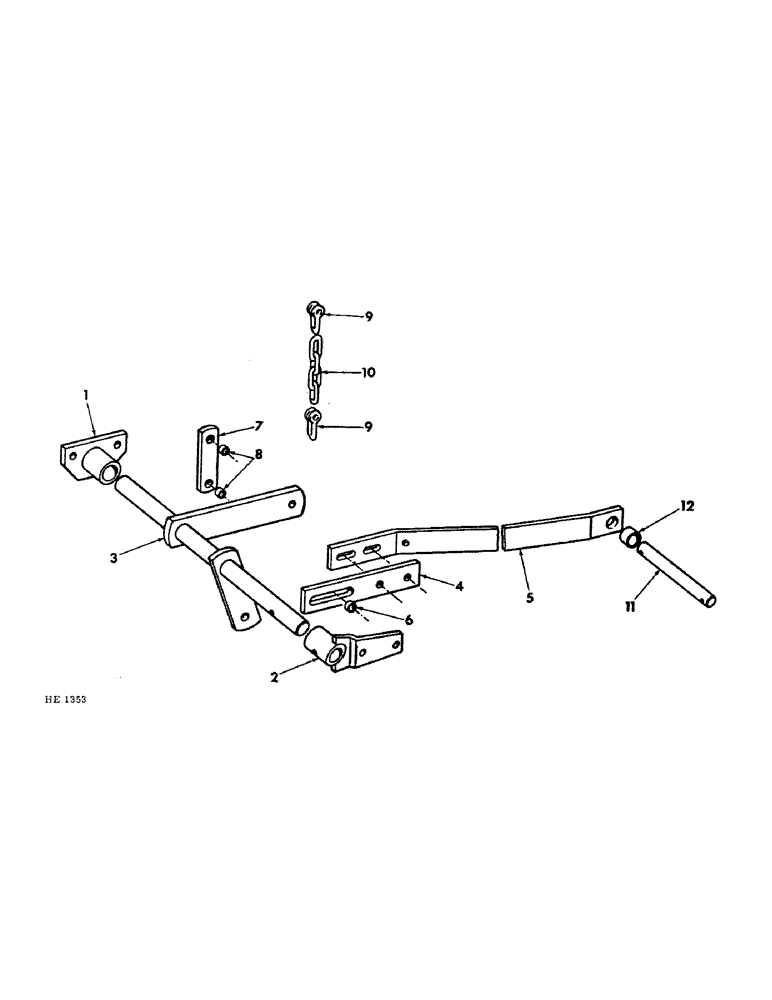

Запчасти Case IH 230 (17-03) - MOUNTED EQUIPMENT, CONDITIONER LIFT MECHANISM Mounted Equipment

1

825753C1

SUPPORT, rockshaft inner LH

1шт.

1

825754C1

SUPPORT, rockshaft inner RH shown

1шт.

271293

PULLEY

LUB-FITTING, 5/16" str

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

825707C1

SUPPORT, rockshaft outer pivot

2шт.

271294

WASHER

LUB-FITTING, 5/16" - 65 deg.

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

824919C1

ROCKSHAFT, lift LH

1шт.

3

824920C1

ROCKSHAFT, lift RH shown

1шт.

22051R1

WASHER

1-17/32 x 2-1/4 x 16 ga

2шт.

432-1636

COTTER PIN,1/4" x 2 1/4"

Pin, Split (Cotter), 1/4" x 2 1/4"

2шт.

4

826255C1

BAR, rockshaft connecting rear

2шт.

271723R1

BOLT, 5/8 x 2"

2шт.

464623R1

WASHER

21/32 x 1-1/4 x 11 ga

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

826256C1

SUPPORT, rockshaft connecting front LH

1шт.

5

826286C1

SUPPORT, rockshaft connecting front RH shown

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2"

4шт.

22191R1

WASHER

17/32 x 1-3/4 x 7 ga

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

6

612378R1

SPACER, connecting bar pivot

2шт.

7

825153C1

BAR, frame lift

2шт.

598815R1

CARRIAGE BOLT

BOLT, 1/2 x 2-1/2" crg

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

8

612379R1

SPACER

lift bar pivot

4шт.

9

455369R2

CLEVIS

chain

4шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

2шт.

NA141

AXLE PIN,1/2" x 1 7/8"

PIN, 1/2 x 1-7/8" std-hd-dld

4шт.

599744R1

AXLE PIN

C-PIN, Q.A.

2шт.

477589R1

WASHER

13/32 x 1-1/2 x 11 ga

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

10

826257C1

CHAIN, hold-up

2шт.

11

826178C1

SHAFT, cyl front and support mounting

2шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga

4шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

12

355682R1

SPACER,3/4" Pipe x 3/4"

shaft

2шт.
