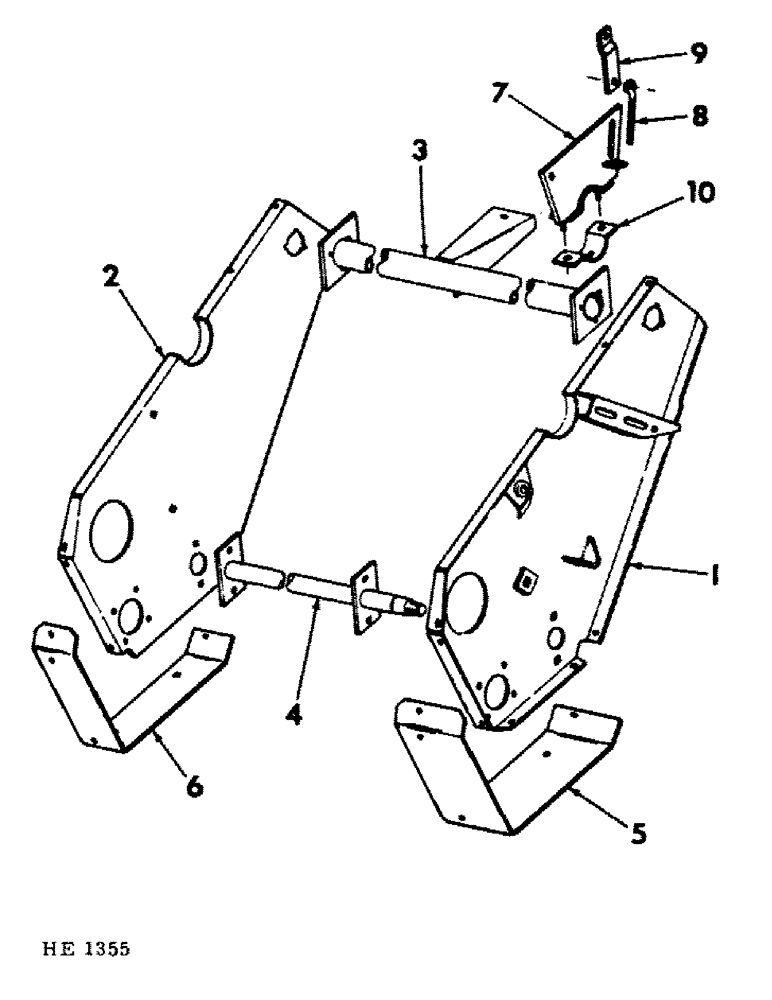

Запчасти Case IH 230 (17-02) - MOUNTED EQUIPMENT, CONDITIONER MAIN FRAME Mounted Equipment
№
Артикул
Название
Примечание
Количество
1
824924C1
SIDE, frame LH
1шт.
2
824925C1
SIDE, frame RH
1шт.
3
825717C1
TUBE, frame brace 46.88, 8.25" Length
1шт.
550796R1
CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5
BOLT, 3/8 x 1-1/4" crg
6шт.
120377
NUT,3/8" - 16, Gr 5
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
6шт.
4
826133C1
SHAFT, lower frame brace
1шт.
598813R1
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5
BOLT, 1/2 x 1" crg
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
9849633
NUT,1"-8, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
492-11100
LOCK WASHER,1"
WASHER, LOCK, 1"
1шт.
5
597760R1
SOLE, LH
1шт.
598809R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
BOLT, 3/8 x 3/4" crg
2шт.
120377
NUT,3/8" - 16, Gr 5
5шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
5шт.
6
597761R1
SOLE, RH
1шт.
598809R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
BOLT, 3/8 x 3/4" crg
2шт.
120377
NUT,3/8" - 16, Gr 5
5шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
5шт.
7
825722C1
SUPPORT
frame rear LH shown
1шт.
7
825723C1
SUPPORt, frame rear RH
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 x 1-1/4"
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
NLS
NO LONGER SERVICED
NUT, 7/16"
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
4шт.
8
612375R2
BOLT,1/2" - 13 x 4 1/8"
frame support adjusting eye
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
9
595895R2
BRACE, adjusting eyebolt
2шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
1/2 x 1-1/2"
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 x 1-1/4"
1шт.
180181
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1/2 x 2"
2шт.
20601R1
WASHER
17/32 x 1-1/4 x 11 ga
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
10
593280R1
CLAMP, frame pivot tube
2шт.
Выбрано товаров: 39
