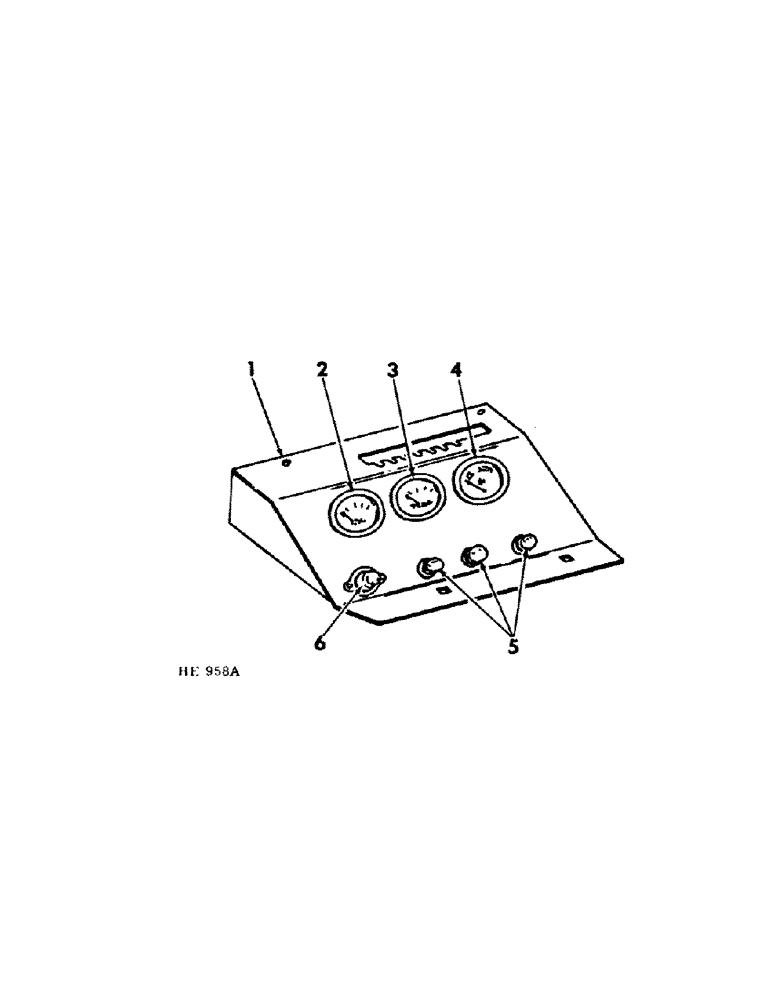

Запчасти Case IH 230 (11-2) - INSTRUMENTS, INSTRUMENT PANEL Instruments

1

825800C1

PANEL, instrument

1шт.

341934C1

NUT

speed

2шт.

162074

COTTER PIN

SCREW, no. 14 x 5/8" pan-hd self-tapping

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

362039R94

GAUGE

oil pressure (opt to use 393488R91, gauge)

1шт.

2

393488R91

SWITCH

GAUGE, oil pressure (opt to use 362039R94, gauge)

1шт.

3

259347R91

GAUGE

heat indicator (includes 1-515100D, bushing)

1шт.

51510D

BUSHING

indicator reducing

1шт.

4

269467R92

INDICATOR

GAUGE, ammeter

1шт.

5

62801DC

SWITCH

3шт.

21053R1

WASHER

19/32 x 1-1/4 x 11 ga

3шт.

6

366317R93

SWITCH

BUTTON, starter

1шт.

6

366317R93GV

CONTROL

Value, Control Switch

1шт.

132903

ADAPTER

SCREW, #10 7/16" rd-hd SLT

2шт.

120611

NUT,#10 - 32

#10

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.
