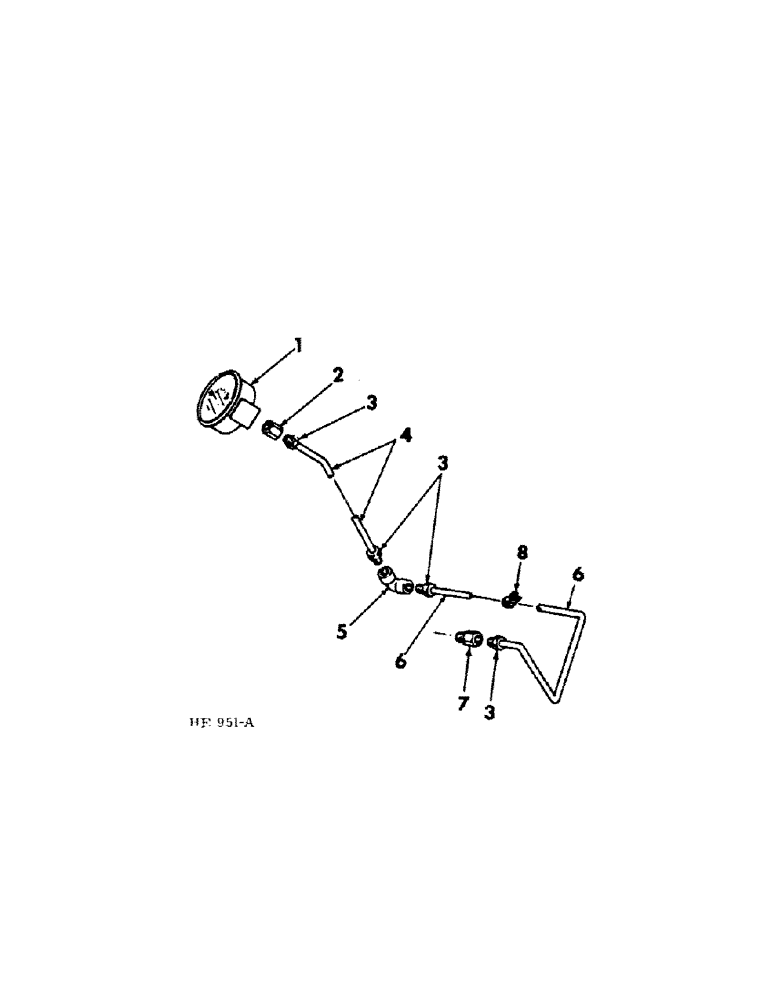

Запчасти Case IH 230 (11-2[A]) - INSTRUMENTS, ENGINE OIL PRESSURE SYSTEM Instruments

1

362039R94

GAUGE

oil pressure (opt with 393488R91, gauge)

1шт.

1

393488R91

SWITCH

GAUGE, oil pressure (opt with 362039R94, gauge)

1шт.

2

257523R1

HYD CONNECTOR,1/8" NPT x 7/16" - 16 ORB

CONNECTOR, gauge

1шт.

3

222-502

TUBE NUT,7/16"-24

NUT, tube

4шт.

4

599942R1

TUBE, oil pressure gauge front 1" OD, 15.5, 1.4" Length

1шт.

5

255828R1

ELBOW, 90deg. tube

1шт.

6

599943R2

TUBE, oil pressure rear

1шт.

7

29901D

HYD CONNECTOR,1/8" NPT x 7/16"-24

CONNECTOR, tube to block

1шт.

8

299400C1

CLAMP

1/4" coated closed

3шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
