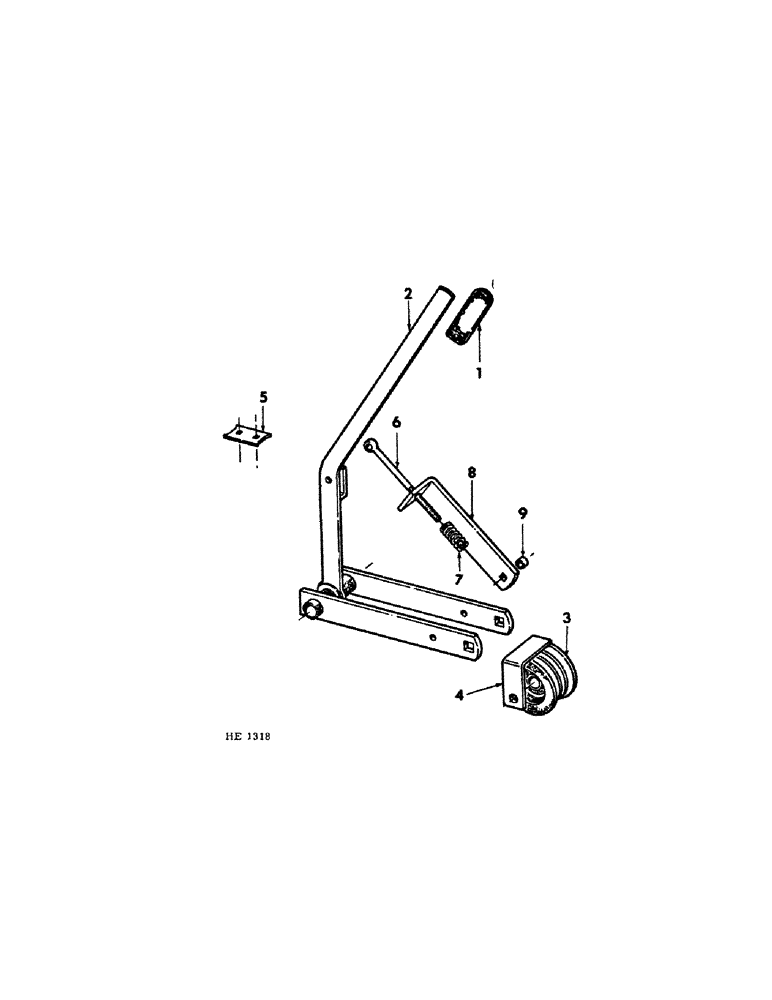

Запчасти Case IH 230 (07-16) - DRIVE TRAIN, PLATFORM DRIVE CONTROL Drive Train

1

938885R1

GRIP

control lever handle

1шт.

2

826216C1

ROCKSHAFT, platform drive

1шт.

271293

PULLEY

LUB-FITTING, 5/16"

1шт.

3

599884R1

PULLEY, platform drive idler (for service parts, refer to "Platform Drive w/Engine Flywheel and PTO")

1шт.

4

592063R1

ANGLE, platform drive belt retainer

1шт.

18724R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT, 5/8 x 4" type 1 crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

5

599139R1

BAR, platform lever stop

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

825296C2

BOLT,3/8" - 16 x 8"

lever tension

1шт.

23282R1

HEADED PIN,3/8" x 1 3/16"

PIN, 3/8 x 1-1/8" std-hd-dld

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

7

593634R1

SPRING

tension bolt

1шт.

8

826213C1

SUPPORT, lever tension

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

353232R1

SPACER,3/8" Pipe x .344

3/8 x 11/32 STD pipe

1шт.
