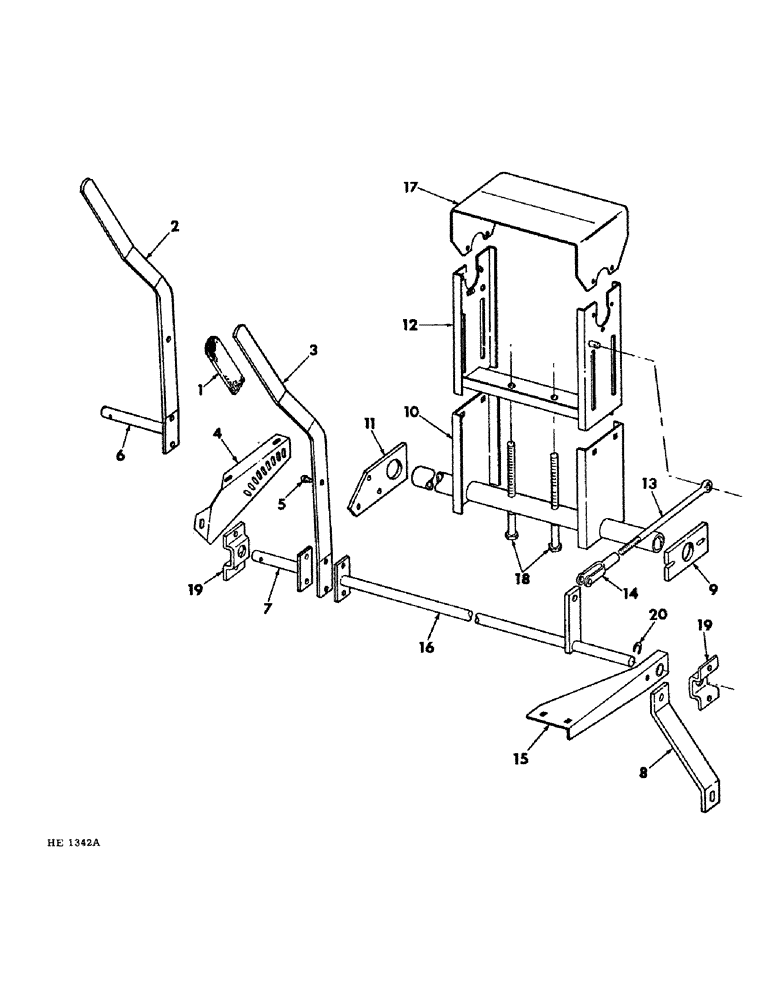

Запчасти Case IH 230 (07-14) - DRIVE TRAIN, VARIATOR DRIVE CONTROL Drive Train

1

938885R1

GRIP

variable speed control lever

1шт.

2

LEVER, w/rockshaft, variable speed control (for service order 1- 825345C1 rockshaft and 1-5990038R3 lever)

1шт.

3

599038R3

LEVER, variable speed control

1шт.

4

599040R1

SECTOR, variator control

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

5

599039R1

STUD, lever

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

6

ROCKSHAFT W/LEVER, variable control (for service order 1- 825345C1 rockshaft and 1-599038R3 lever)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

7

825345C1

ROCKSHAFT, variator control

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

2шт.

609836R1

WASHER

11/32 x 1-3/4 x 16 ga

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

826215C1

SUPPORT, brace

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9

823023C1

BAR, variator frame outer support LH

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

10

824941C1

FRAME, variator outer

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

826174C1

BAR, variator frame support RH

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

12

825749C1

FRAME, variator inner

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

599044R1

BOLT, variator control adjusting

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga

1шт.

120371

NUT,1/2"-20, G5

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

14

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE, 1/2" rod end

1шт.

103498

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64" rod end

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

15

599041R1

SUPPORT, variator shaft

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

16

599046R2

ROCKSHAFT, variator control LH

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

2шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

17

599071R2

SHIELD

variator belt

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

825685C1

BOLT, variator adjuster

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2" jam

4шт.

19

826159C2

SUPPORT

variator lever bearing

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20

461049R1

OIL SEAL

RING, rockshaft spacer LH

1шт.
