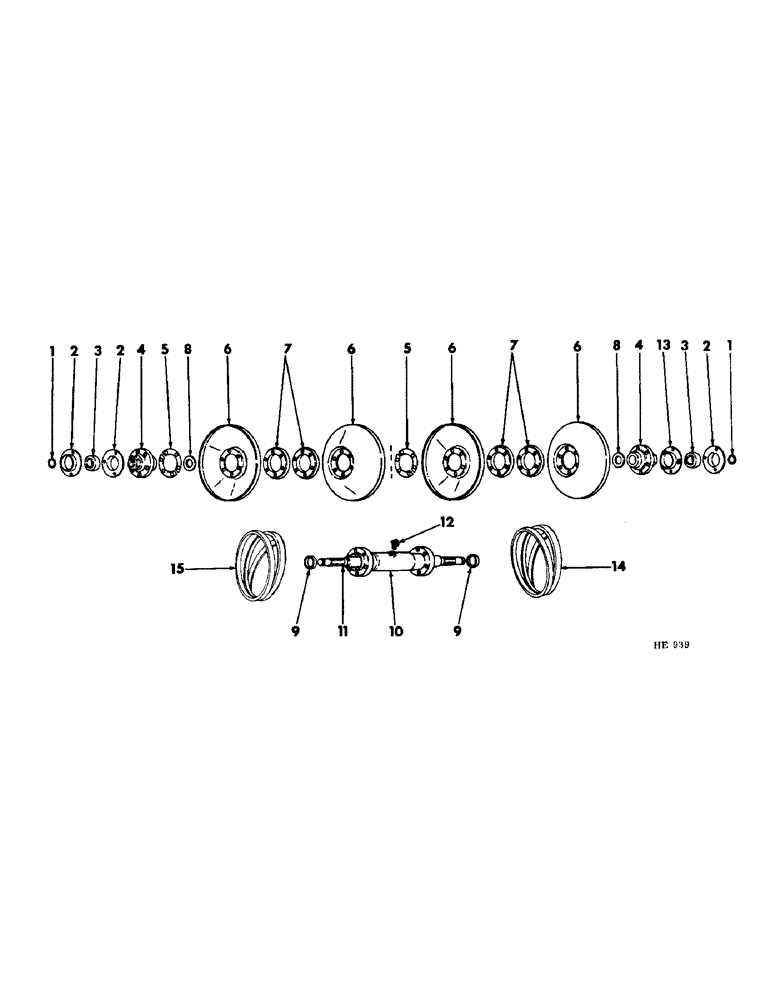

Запчасти Case IH 230 (07-12) - DRIVE TRAIN, VARIATOR DRIVE Drive Train

1

758318C1

SNAP RING,#98, Ext

Ring, Snap, , bearing #98, Ext

2шт.

2

462360R1

FLANGED BEARING

TTE, bearing

3шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

3

591860R91

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

variable speed drive shaft

2шт.

4

599064R1

HUB

variator inner

2шт.

181596

SCREW,Hex, 5/16"- 24 x 7/8", Gr 5

BOLT, 5/16 x 7/8"

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

5

594857R1

SHIM, variable speed pulley

1шт.

6

591863R1

PULLEY

variable speed half

4шт.

7

594368R1

RETAINER, pulley inner

4шт.

8

21214R1

WASHER

1-5/32 x 2 x 11 ga

2шт.

9

591867R91

OIL SEAL

variator hub oil

2шт.

10

599062R2

HUB

variator inner

1шт.

181004

BOLT,Hex, 5/16" - 24 x 1 1/8", Gr 5

5/16 x 1-1/8"

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

11

599061R1

SHAFT

variable speed

1шт.

12

62022R91

FITTING

1/8" pressure

1шт.

13

599066R1

RETAINER

FLANGETTE, bearing RH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

14

599068R1

V-BELT,1.25" W x 114.00" L

Variator to planetary 1.25" W x 114.00" L

1шт.

15

599060R1

V-BELT,31.75 mm W

Engine to variator 31.75 mm W

1шт.
