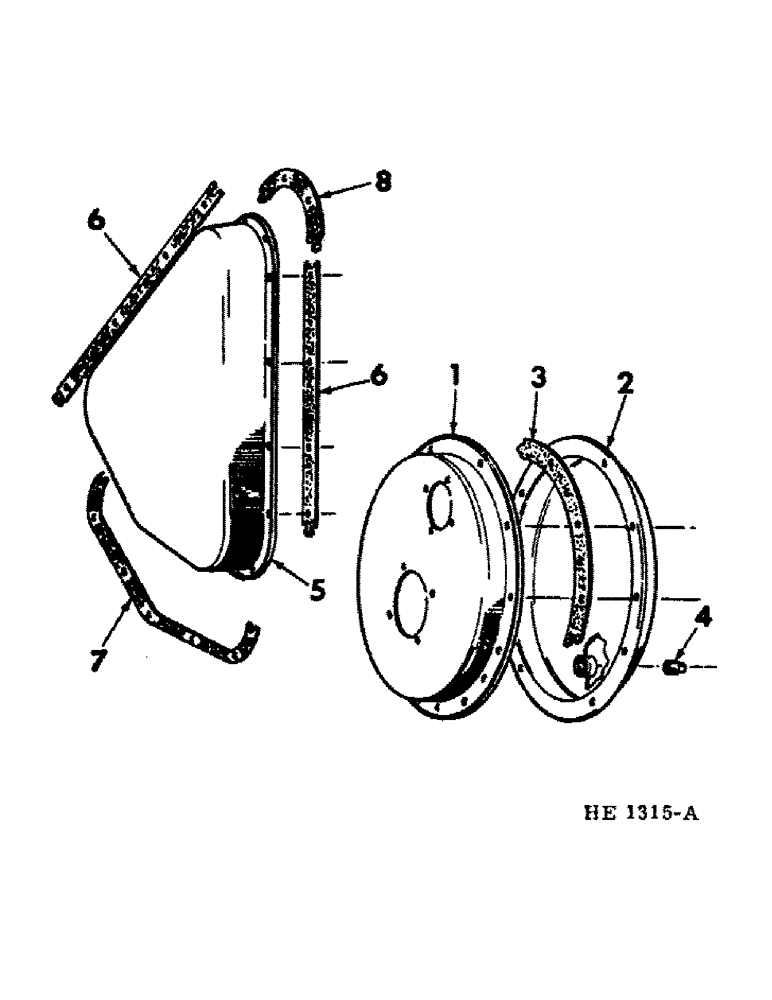

Запчасти Case IH 230 (07-09) - DRIVE TRAIN, FINAL DRIVE HOUSING AND CHAIN COVERS Drive Train

1

824822C1

HOUSING, pinion gear

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

8шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

2

824856C1

COVER W/GASKETS ASSY, pinion housing

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

28шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16" flanged

28шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 ga

28шт.

3

824668C1

GASKET

housing cover (for service order 824677C91 kit) (NSS)

8шт.

4

618465R91

MAGNETIC PLUG

PLUG, 1/2" magnetic pipe

2шт.

5

826195C1

COVER W/GASKETS ASSY, final drive chain

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

29шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16" flanged

20шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .638 x .051 ga

30шт.

6

827070C1

GASKET

final drive chain (for service order 824667C91 kit) (NSS)

4шт.

7

827037C1

GASKET

final drive chain (for service order 824667C91 kit) (NSS)

2шт.

8

827036C1

GASKET

final drive chain (for service order 824667C91 kit) (NSS)

2шт.

824667C91

GASKET KIT

KIT, gasket seal, composed of: (4) gasket 824668C1 (NSS), (2) gasket 827070C1 (NSS), (1) gasket 827037C1 (NSS), (1) gasket 827036C1 (NSS)

1шт.
