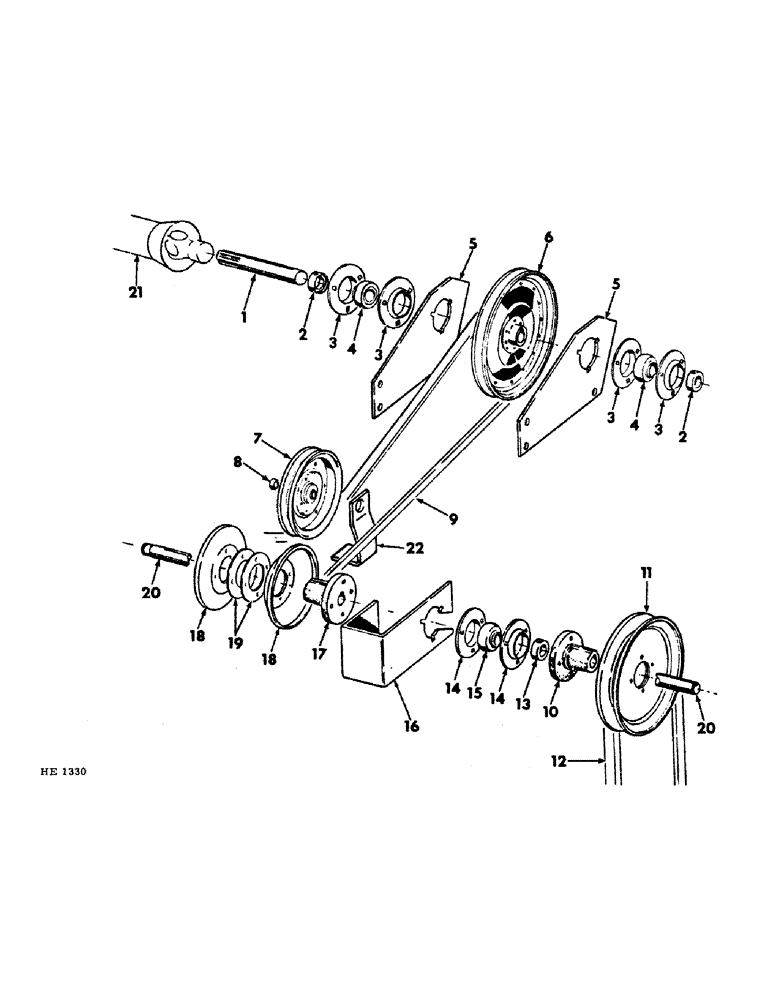

Запчасти Case IH 230 (07-08) - DRIVE TRAIN, CHASSIS PLATFORM DRIVE RH, (FOR USE W/CONDITIONER) Drive Train

1

599141R1

SHAFT

platform secondary drive

1шт.

2

455104R11

COLLAR

w/SCREW, drive shaft bearing locking

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

3

617863R1

FLANGED BEARING

TTE, secondary drive shaft bearing

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

4

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

platform secondary drive shaft

2шт.

5

599142R1

SUPPORT, secondary drive shaft bearing

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

6

824991C1

PULLEY

platform driven

1шт.

Q3727

KEY, 3/8 sq x 2" tapered Gib, 3/8" Sq x 2" Tap

1шт.

7

565441R91

BEARING

PULLEY, drive belt idler

1шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

BOLT, 5/8 x 3-1/4"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

8

610397R1

SPACER, idler pulley

1шт.

9

599355R1

V-BELT,0.88" W

Platform drive 0.88" W

1шт.

10

595353R1

HUB, conditioner drive pulley

1шт.

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2" gib-hd

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

595622R11

PULLEY

conditioner drive (for service parts refer to "Conditioner Drive" Group 17)

1шт.

12

824961C1

BELT,1.258" W x 70.50" L

Conditioner Jackshaft Drive 1.258" W x 70.50" L

1шт.

13

455104R11

COLLAR

w/SCREW, countershaft bearing locking RH

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

1шт.

14

617863R1

FLANGED BEARING

TTE, countershaft bearing RH

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

15

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

countershaft RH

1шт.

16

825701C1

SUPPORT, outer bearing drive pulley

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

17

595353R1

HUB, main drive platform pulley

1шт.

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2" gib-hd

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18

609727R3

PULLEY

main drive half

2шт.

19

609776R1

SPACER, main drive pulley

5шт.

20

825737C1

SHAFT, main drive counter

1шт.

21

UNIVERSAL, platform drive (for service parts refer to "Platform Universal" Group 16)

1шт.

22

826070C1

GUIDE, platform drive belt

1шт.
