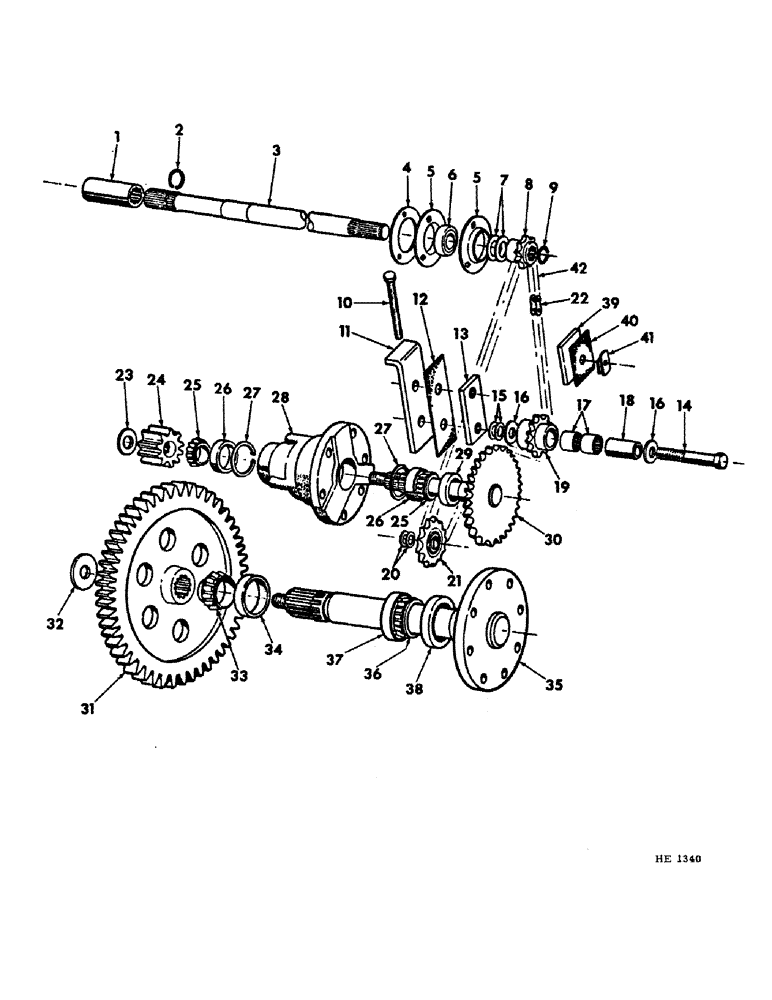

Запчасти Case IH 230 (07-06) - DRIVE TRAIN, FINAL DRIVE Drive Train

1

599072R1

COUPLING

final drive shaft

2шт.

2

152450R1

SNAP RING,#125, Ext

Ring, Snap, , coupling #125, Ext

2шт.

3

824824C1

SHAFT

final drive

2шт.

4

595196R1

GASKET

bearing flangette

2шт.

5

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, bearing

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

6

591871R91

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

final drive shaft

2шт.

7

595201R1

WASHER

final drive shaft

8шт.

8

825350C1

SPROCKET, 12T final drive input shaft

2шт.

8

596017R1

SPROCKET ASSY.

SPROCKET, 11T final drive input shaft (slow speed)

2шт.

9

313675R1

RING, SNAP,#106, Ext

sprocket #106, Ext

2шт.

10

599424R1

BOLT,Hex, 7/16" - 14 x 4.25", Gr 2

tightener sprocket adjusting

2шт.

271501

SOCKET

NUT, 7/16"

2шт.

11

825760C1

SUPPORT, tightener sprocket adjusting

2шт.

271787

SHIELD

BOLT, 3/4 x 1-1/4" NF

2шт.

827566C1

WASHER, sealing

2шт.

12

826175C1

GASKET, adjusting support

2шт.

13

825759C1

BAR

tightener sprocket

2шт.

14

825756C1

BOLT,Hex, 3/4" - 16 x 4 1/2", Gr 5

3/4 x 4-1/2" NF special

2шт.

426099

NUT,3/4"-16, G5

3/4" NF

2шт.

827566C1

WASHER, sealing

2шт.

15

21757R1

WASHER

25/32 x 1-1/4 x 22 ga special bolt (use as req'd)

8шт.

16

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga special bolt

4шт.

17

102613R91

NEEDLE BEARING

sprocket

4шт.

18

826272C1

BUSHING

sprocket

2шт.

19

826268C1

SPROCKET ASSY.

SPROCKET, 15T rear tightener

2шт.

20

21782R1

WASHER

21/32 x 1-1/2 x 16 ga idler

1шт.

21

610538R92

SPROCKET ASSY.

SPROCKET, 15T idler

2шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

22

1310D

LINK

connecting

2шт.

23

21162R1

WASHER

1-1/32 x 2 x 7 ga pinion shaft

2шт.

24

824827C1

GEAR, 13T pinion

2шт.

25

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

CONE, pinion shaft bearing

4шт.

26

536054R1

BEARING CUP,60mm OD x 11.94mm W

CUP, pinion shaft bearing

4шт.

27

562025R1

CIRCLIP

RING, pinion shaft cup retaining

4шт.

28

826126C1

HOUSING

pinion shaft

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

29

384386R91

OIL SEAL,42.7mm ID x 63.7mm OD x 8.33mm Thk

Oil, Pinion Shaft Outer 1.752" ID x 2.503" OD x .689

2шт.

30

824885C1

SHAFT, sprocket & pinion

2шт.

596722R1

NUT

1" hex-sltd

2шт.

NLS

NO LONGER SERVICED

SPLIT (COTTER), 3/16" x 2"

2шт.

31

366335R1

GEAR

76T drive axle

2шт.

32

586043R1

WASHER

1-1/32 x 3 x 3 ga drive axle

2шт.

33

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

CONE, axle inner

2шт.

34

364462C1

BEARING CUP,82.55mm OD x 16.51mm W

CUP, axle inner

2шт.

35

824826C21

AXLE

ASSY, final drive composed of: (1) axle (NSS), (1) nut 596722R1, (1) washer 586043R1, (1) pin 103411

2шт.

566206R2

BOLT,5/8" - 18 x 2.38", Class 8

wheel

16шт.

554480R1

WHEEL NUT

wheel

16шт.

36

327195R91

BEARING ASSY,2.25" ID x 3.8125" OD x 0.8268"

CONE, axle outer bearing

2шт.

37

105497H

BEARING CUP,96.85mm OD x 15.77mm W

CUP, axle outer

2шт.

38

824878C91

OIL SEAL

axle outer

2шт.

39

825336C1

BAR, access cover

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

40

825337C1

GASKET, access cover

2шт.

41

825335C1

NUT, access cover

2шт.

42

CHAIN ASSY, final drive (5/8" pitch standard) (for service order 1-1791D 10 ft. chain reduce to 97 links and add 1-1310D connecting link)

2шт.
