Запчасти Case IH 230 (07-04) - DRIVE TRAIN, PLANETARY TRANSMISSION Drive Train

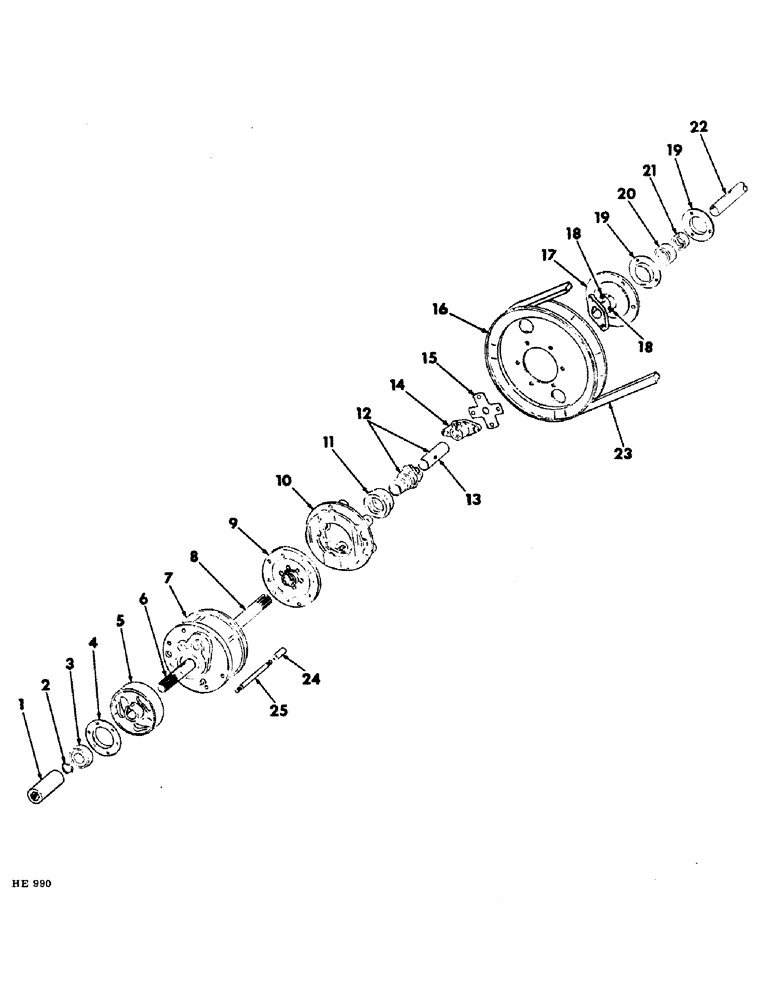

Схема запчастей Case IH 230 - (07-04) - DRIVE TRAIN, PLANETARY TRANSMISSION Drive Train

Артикул

Название

Примечание

Количество

1

599072R1

COUPLING

final drive shaft

2шт.

2

659380R1

SNAP RING,#137, Ext

Ring, Snap, , bearing #137, Ext

2шт.

3

599112R91

BEARING ASSY,35mm ID x 72mm OD x 17mm W

output shaft

2шт.

4

599113R1

FLANGETTE, output shaft left & right

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

6шт.

619856R1

WASHER

13/32 x 1 x 16 ga

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

5

599016R1

HUB, brake

2шт.

117977

WOODRUFF KEY

KEY, 5/16 x 1" Woodruff

2шт.

6

599111R21

GEAR, planetary output

2шт.

7

HOUSING ASSY, planetary (for service parts refer to "Planetary Housing")

2шт.

8

599103R1

SHAFT, input (LH) (shaft end w/spline)

1шт.

9

PLATE & HUB ASSY, clutch (for service parts refer to "Planetary Clutch And Plate")

2шт.

10

CLUTCH, planetary (for service parts refer to "Planetary Clutch And Plate")

2шт.

11

595177R92

THRUST BEARING

clutch throw-out

2шт.

12

595176R21

CARRIER

ASSY, clutch throw-out (includes 1-523092R1, bushing)

2шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUB-FITTING, 1/8-90deg.

2шт.

13

523092R1

BUSHING,28.63mm ID x 33.45mm OD x 63.5mm L

carrier

2шт.

14

599104R1

HUB

coupling

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

15

596020R2

RETAINER

coupling

1шт.

596021R1

BOLT

BOLT, special

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

16

599069R1

PULLEY, planetary drive

1шт.

17

599105R1

HUB, reversing drive coupling

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4"

6шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

581307R1

KEY,5/16" Sq x 2 3/4", Par

5/16" sq x 2-3/4"

1шт.

18

567821R1

SCREW

7/16 x 3/4" sq-hd dld cup-pt set

2шт.

19

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, input shaft (RH)

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

20

455960R91

BALL BEARING

BEARING, input shaft RH

1шт.

21

557115R11

COLLAR

COLLAR W/SCREW, bearing locking

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

1шт.

22

599106R1

SHAFT

input (RH) (shaft end w/keyway)

1шт.

23

599068R1

V-BELT,1.25" W x 114.00" L

Planetary to variator 1.25" W x 114.00" L

1шт.

24

591887R1

SPACER, clutch

12шт.

25

599117R1

STUD, planetary transmission

12шт.

120368

NUT,5/16"-24, G5

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.
