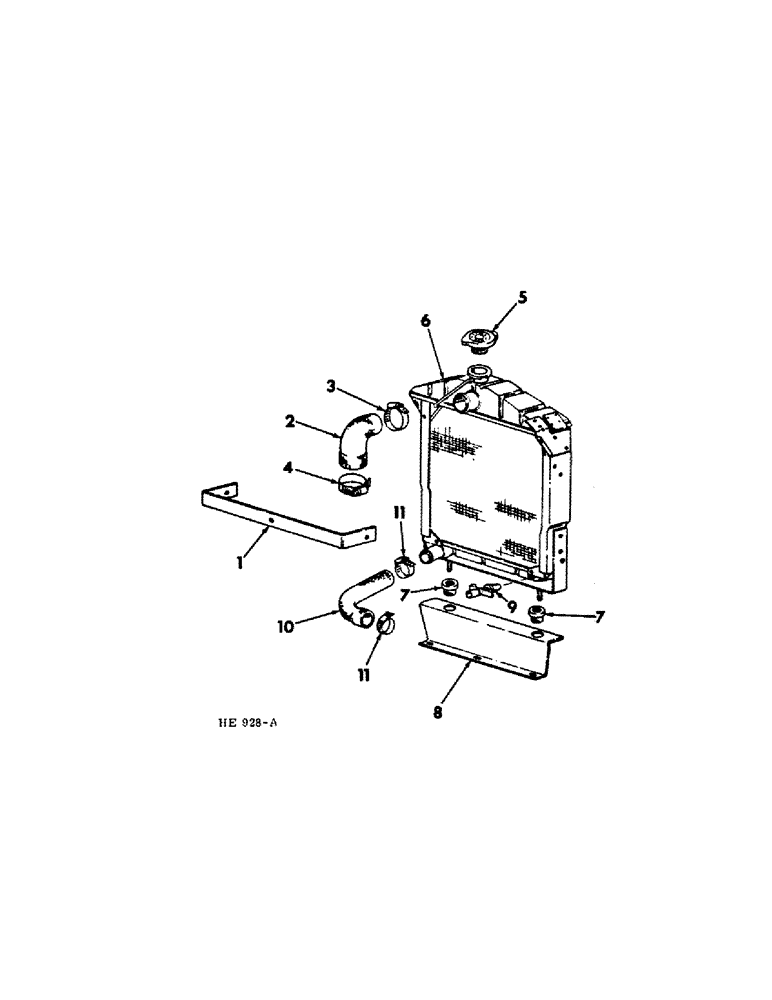

Запчасти Case IH 230 (06-2) - COOLING, RADIATOR AND SUPPORTS Cooling

1

599888R1

SUPPORT, radiator upper

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

2

599889R1

RADIATOR HOSE

HOSE, radiator inlet upper

1шт.

3

279026R91

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP, hose upper

1шт.

4

39240H

CLAMP

hose outlet

1шт.

5

361705R91

COVER

CAP, radiator

1шт.

6

599887R92

RADIATOR, w/o cap, cooling

1шт.

271501

SOCKET

NUT, 7/16"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

7

271928R1

GROMMET

MOUNT, radiator rubber

2шт.

893862R1

WASHER

15/32 x 1-1/4 x 11 ga

2шт.

53718V

WASHER

1-9/32 x 2 x 4 ga

2шт.

8

599886R1

SUPPORT, radiator lower

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

9

614201R1

VALVE

radiator drain

1шт.

10

599890R1

RADIATOR HOSE

HOSE, radiator outlet lower

1шт.

11

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, hose

2шт.
