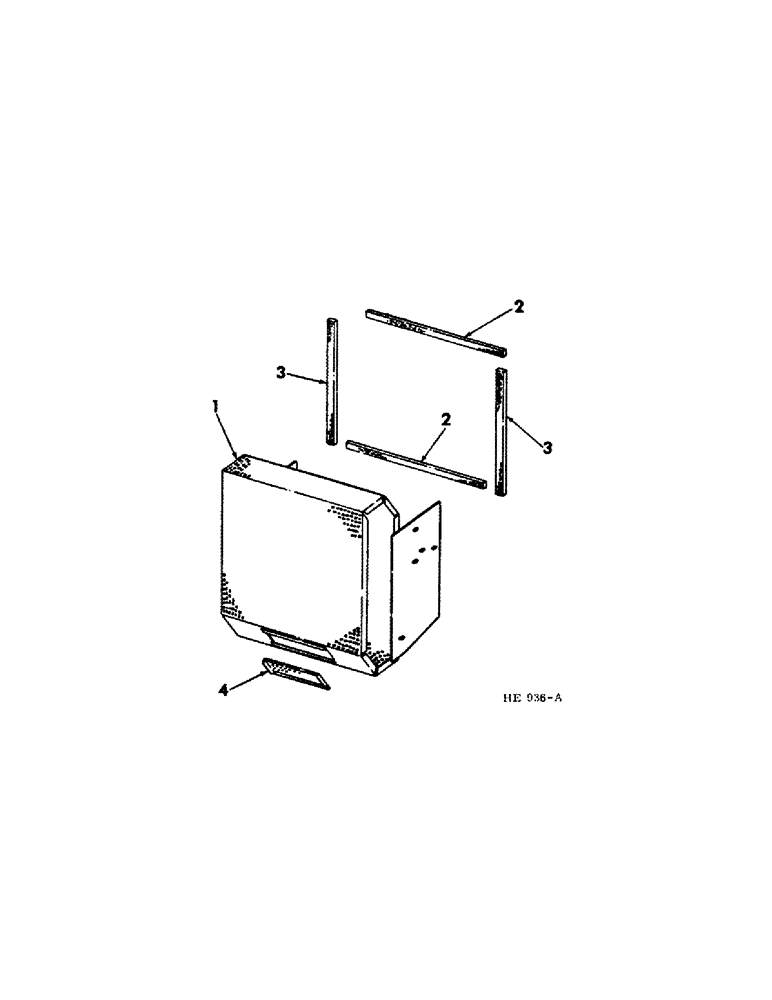

Запчасти Case IH 230 (06-2[A]) - COOLING, RADIATOR SCREEN Cooling

1

610890R92

SCREEN, radiator composed of: (1) screen (NSS), (2) seal 825688C1, (2) seal 826164C1

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 x 1/2"

2шт.

Not part of screen.

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

2шт.

Not part of screen.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

Not part of screen.

1шт.

2

SEAL, radiator screen inner 16.5 inch (order from bulk stock no. 823821C1)

2шт.

3

SEAL, radiator screen side 21 inch (order from bulk stock no. 823821C1)

2шт.

4

610885R1

DOOR, radiator screen clean-out

1шт.
