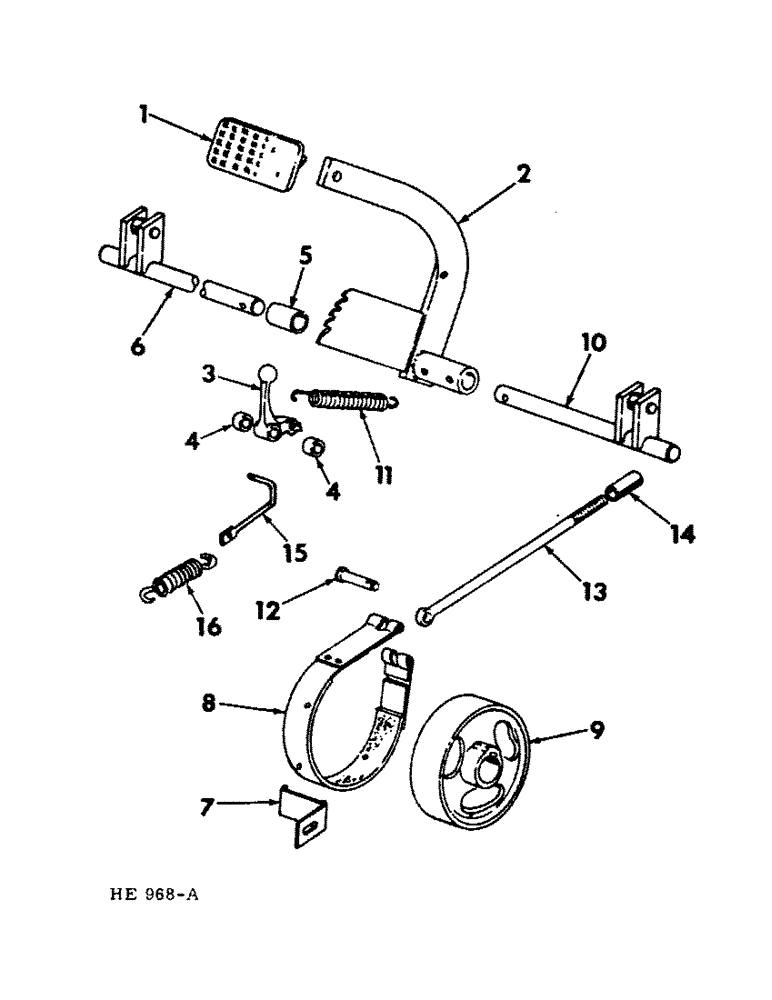

Запчасти Case IH 230 (04-2) - BRAKES, BRAKES AND CONTROLS (5.1) - BRAKES

1

599000R1

PAD, brake pedal

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

599001R1

ARM, brake pedal

1шт.

19790R1

PIN,5/16" x 1 1/4", Coiled

2шт.

3

827568C1

PAWL, brake pedal arm lock

1шт.

PG141

PIN

1/2 x 2" std-hd-dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

4

610395R1

SPACER,1/2" X-Strng Pipe x 3/8"

pawl (prior to 1974 season)

2шт.

5

599010R1

SPACER, brake rockshaft

1шт.

6

823006C1

ROCKSHAFT, brake LH

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

7

599017R1

GUIDE, brake band

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

599013R91

BAND

ASSY, brake (for service parts refer to "Brake Band")

2шт.

9

599016R1

HUB, brake

2шт.

117977

WOODRUFF KEY

KEY, 5/16 x 1" Woodruff

2шт.

10

823007C1

ROCKSHAFT, brake RH

1шт.

11

510029R1

SPRING

pedal return

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2"

1шт.

120376

NUT,5/16"-18, G5

2шт.

12

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, 3/8 x 1-25/32 rod end

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga

4шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

C-PIN, Q.A.

4шт.

13

596380R1

BOLT, brake adjusting

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

14

86313R1

SPACER,3/8" X-Strng Pipe x 1 3/8"

adjusting bolt

2шт.

15

827565C1

ROD, brake pawl spring (1974 season and since)

1шт.

432-48

COTTER PIN,1/16" x 1/2"

C-PIN, 1/16 x 1/2"

1шт.

21549R1

WASHER

.281 x .750 x .054 ga

1шт.

16

EA66

SPRING, brake pawl (1974 season and since)

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.
