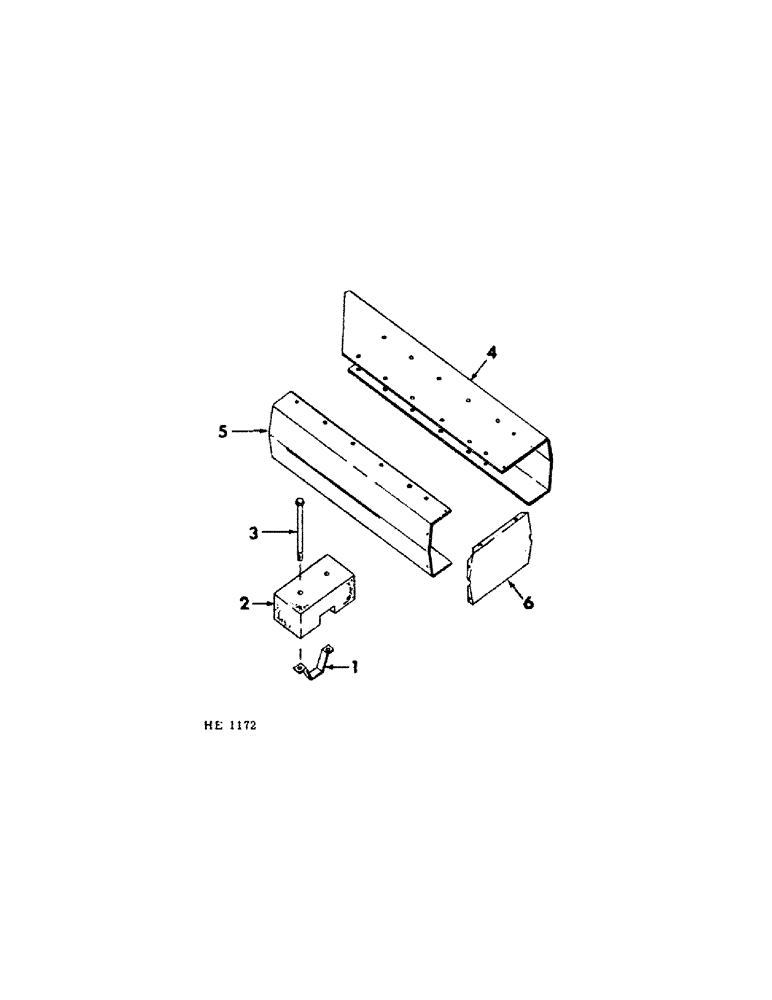

Запчасти Case IH 230 (09-4) - FRAME, CASTER WHEEL BEAM WEIGHTS (12) - FRAME

1

825455C1

SUPPORT, beam weight block (4 used 16-1/2 ft w/bat reel) (4 used 14-1/2 ft w/pick-up reel) (5 used 16-1/2 ft w/pick-up reel) (5 used 19-1/2 ft w/bat reel)

3шт.

2

825454C1

BLOCK, weight (8 used 16-1/2ft w/bat reel) (8 used 14-1/2 ft w/pick-up reel) (10 used 16-1/2 ft w/pick-up reel) (10 used 19-1/2 ft w/bat reel)

6шт.

3

825000C1

BOLT, 1/2 x 17" support (8 used 16-1/2 ft w/bat reel) (8 used 14-1/2 ft w/pick-up reel) (10 used 16-1/2 ft w/pick-up reel) (10 used 19-1/2 ft w/bat reel)

6шт.

21883R1

WASHER

17/32 x 1-3/4 x 11 ga (1 per bolt)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, (2 per bolt) 1/2"-13, G5

1шт.

4

825457C1

SHIELD, weight RH

1шт.

5

825481C1

SHIELD, weight LH

1шт.

6

825458C1

COVER, weight block

1шт.

564791R1

SPRING NUT

speed

6шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 x 1/2" rd-hd SLT

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.
