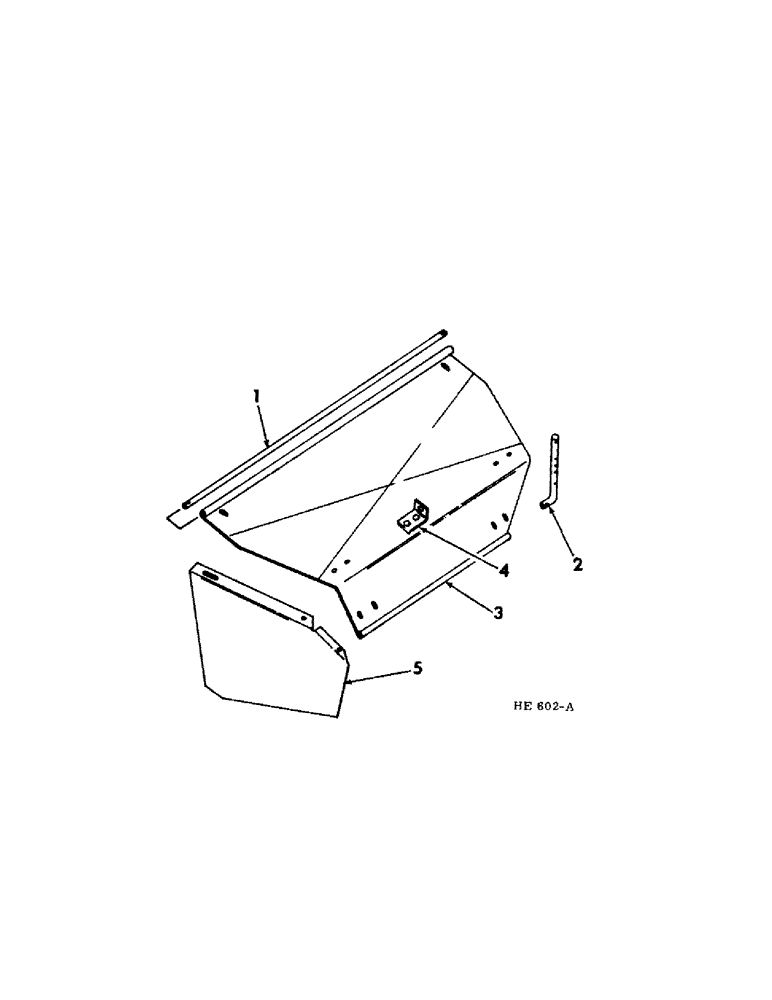

Запчасти Case IH 230 (09-4[A]) - FRAME, WINDROWER REAR DEFLECTOR (12) - FRAME

1

595951R1

ROD

deflector pivot

1шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

2

607365R2

ROD, rear deflector adjusting

1шт.

599744R1

AXLE PIN

C-PIN, Q.A.

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

3

825740C1

DEFLECTOR, rear

1шт.

4

826273C1

ANGLE, adjusting rod support

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" ceg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

597775R1

DEFLECTOR, rear side LH shown

1шт.

5

597776R1

DEFLECTOR, rear side RH

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

134238R1

WASHER

11/32 x 1 x 16 ga

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.
