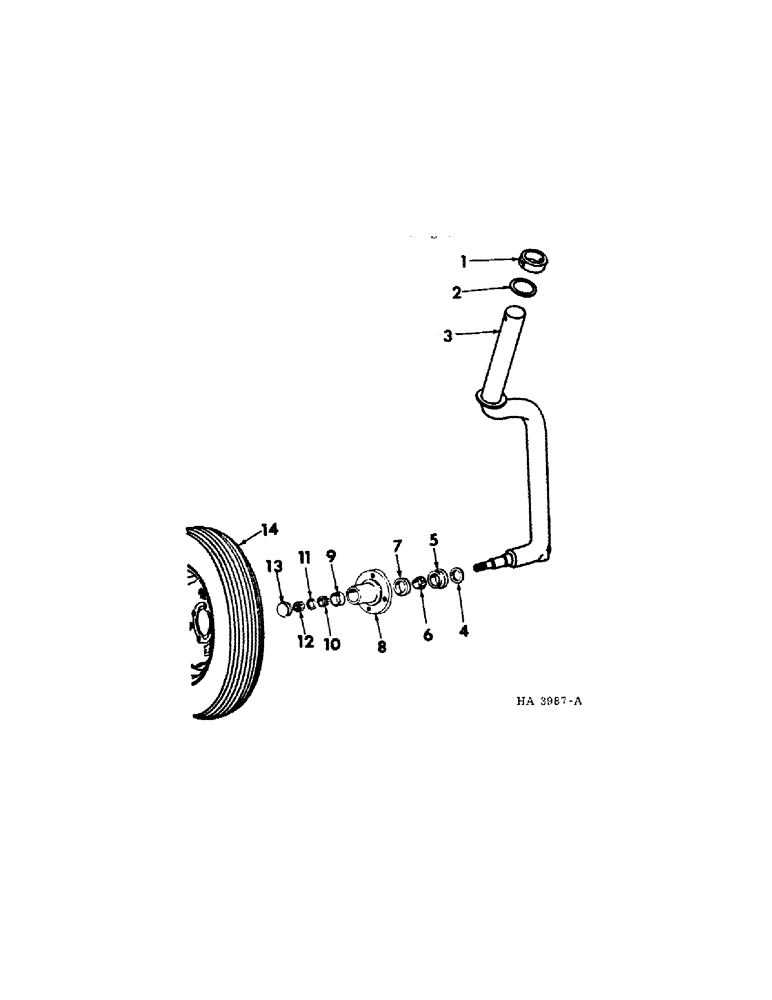

Запчасти Case IH 230 (09-3) - FRAME, CASTER WHEEL HUB AND AXLE (SINGLE) (12) - FRAME

1

619930R1

BUSHING

caster axle retainer

1шт.

19525R1

PIN,3/8" x 2 3/4", Coiled

1шт.

2

21719R1

WASHER

2-1/32 x 2-3/4 x 11 ga (use as req'd)

2шт.

3

599281R11

AXLE ASSY, composed of: (1) axle (NSS), (1) nut 427640, (1) washer 467750R1, (1) pin 103396

1шт.

4

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

axle spindle oil

1шт.

5

472222R1

SLEEVE

axle spindle oil seal wear

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel inner bearing

1шт.

7

651817R1

BEARING CUP

CUP, wheel hub inner

1шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

8

591535R1

HUB

wheel

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

4шт.

9

651814R1

BEARING CUP

CUP, wheel hub outer bearing

1шт.

10

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, wheel hub outer bearing

1шт.

10

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

11

467750R1

WASHER

25/32 x 1-1/2 x 11 ga

1шт.

12

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4" hex slotted

1шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

1шт.

13

602959R1

PLUG

CAP, wheel hub

1шт.

14

WHEEL ASSY, caster tail (for service parts refer to "Wheels" Group 15)

1шт.
