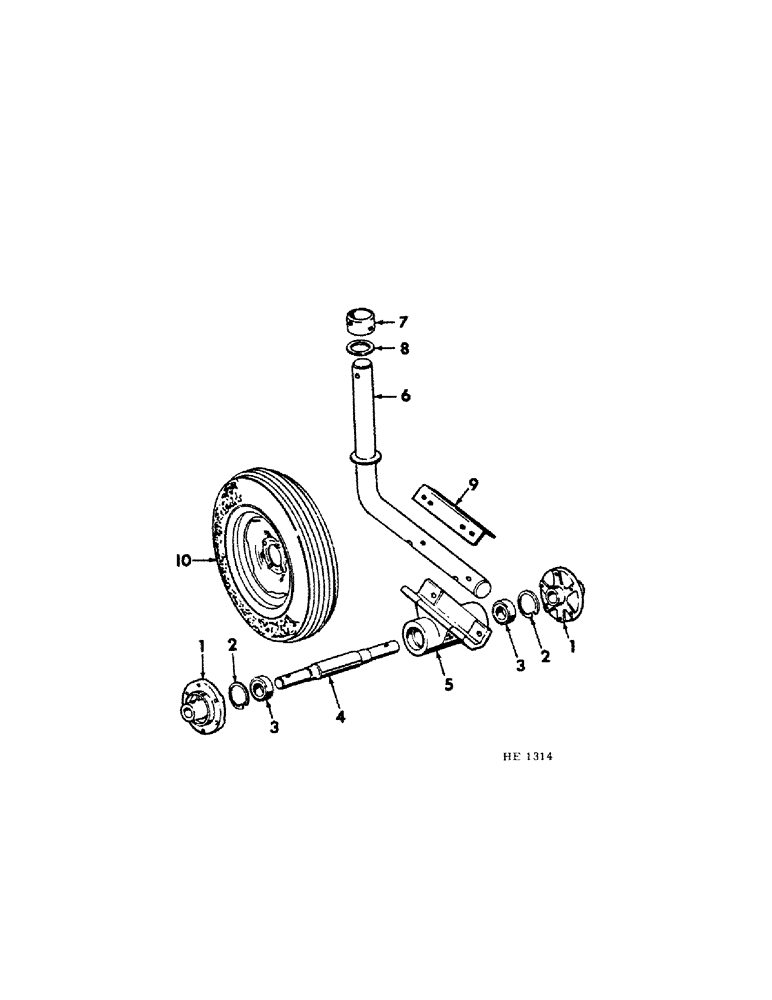

Запчасти Case IH 230 (09-3[A]) - FRAME, CASTER WHEEL HUB AND AXLE (DUAL) (12) - FRAME

1

816559C1

HUB

caster wheel

2шт.

816576C1

PIN

caster wheel hub

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

2

659676R1

SNAP RING,3.156", Int, #315

Ring, Snap, , brg 3.156", Int, #315

2шт.

3

662519R91

BALL BEARING,1.5312" ID x 80 mm OD x 1.083"

wheel

2шт.

4

816558C1

AXLE

wheel

1шт.

5

816560C2

CARRIER

axle and bearing

1шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

5/8 x 4-1/2"

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

4шт.

6

826902C1

SHANK, tail wheel pivot

1шт.

7

619930R1

BUSHING

COLLAR, tail wheel support

1шт.

19525R1

PIN,3/8" x 2 3/4", Coiled

1шт.

8

21719R1

WASHER

2-1/32 x 2-3/4 x 11 ga

1шт.

9

826904C1

ANGLE, axle support

2шт.

10

WHEEL ASSY, caster tail (for service parts refer to "Wheels" Group 15)

2шт.
