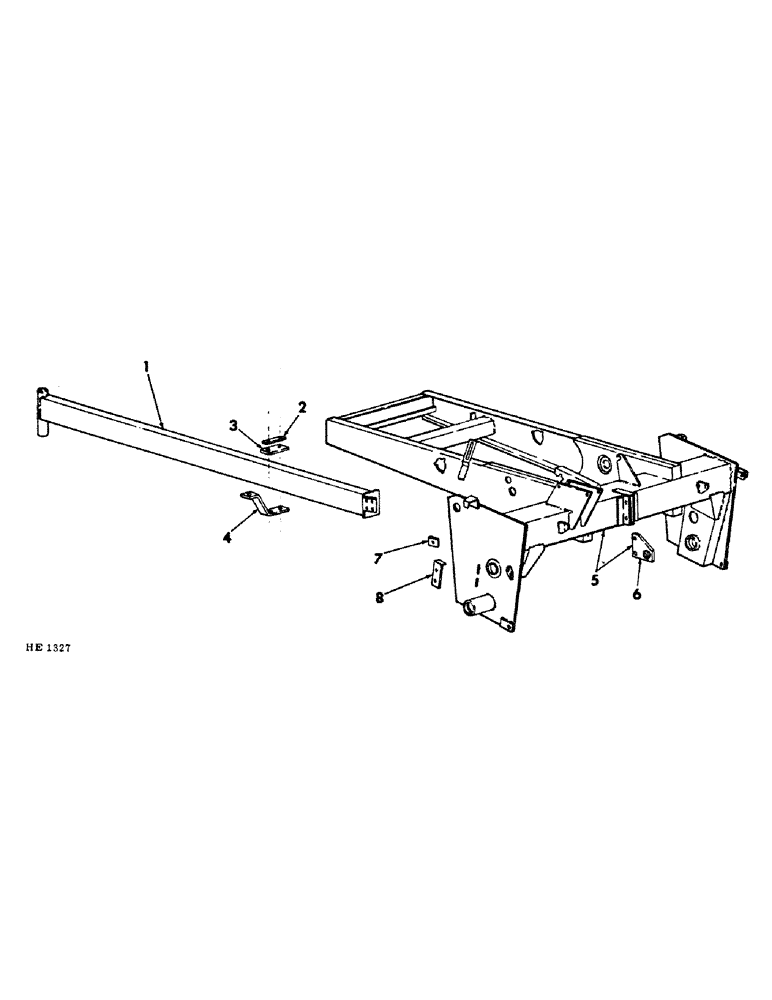

Запчасти Case IH 230 (09-2) - FRAME, MAIN FRAME AND TAIL BEAM (12) - FRAME

1

824938C1

BEAM, tail

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

3шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

826200C1

BAR, beam anchor upper inner

1шт.

3

825693C1

BAR, beam anchor upper

1шт.

20252R1

BOLT,Hex, 3/4" - 10 x 10", Gr 5

3/4 x 10"

2шт.

280954

NUT,3/4"-10, G5

4шт.

4

825694C1

SUPPORT, tail beam rear

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

3/4 x 2"

1шт.

280954

NUT,3/4"-10, G5

2шт.

5

824871C11

FRAME ASSY, chassis main (includes 1-824771C1, joint)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

6

824771C1

JOINT

platform center link

1шт.

271293

PULLEY

LUB-FITTING, 5/16"

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4 x 2"

2шт.

280954

NUT,3/4"-10, G5

2шт.

7

825336C1

BAR, access cover (for service parts refer to "Final Drive" Section B)

2шт.

8

825760C1

BAR, tightener sprocket (for service parts refer to "Final Drive" Group 7)

2шт.
