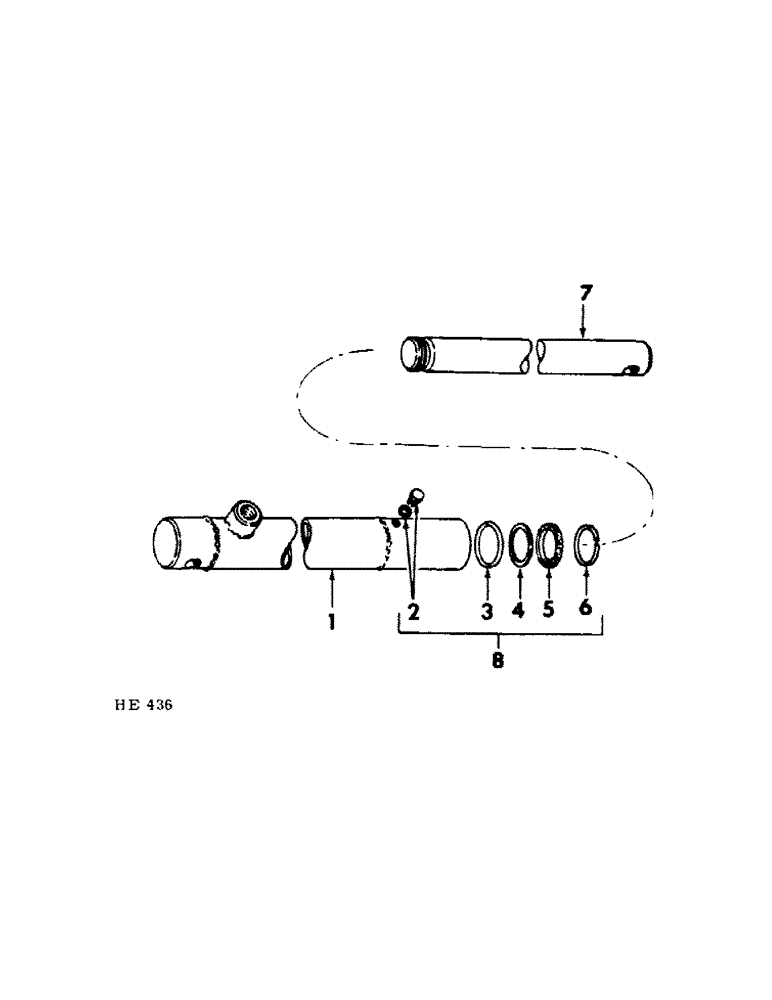

Запчасти Case IH 230 (10-11) - HYDRAULICS, CYLINDER - REEL LIFT SLAVE (07) - HYDRAULICS

825295C91

CYLINDER

reel lift slave (includes all parts listed below unless otherwise noted)

1шт.

825393C1

PIN, slave cyl

1шт.

Not part of cylinder.

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

Not part of cylinder.

1шт.

1

599991R1

BARRELL, hyd cylinder

1шт.

2

SCREW AND WASHER, bleeder (order 1-826027C91, kit) (NSS)

1шт.

3

"O" RING, piston rod (order 1-826027C91, kit) (NSS)

1шт.

4

WASHER, back-up (order 1-826027C91, kit) (NSS)

1шт.

5

OIL SEAL, piston rod (order 1-826027C91, kit) (NSS)

1шт.

6

RING, piston rod snap (order 1-826027C91, kit) (NSS)

1шт.

7

609985R1

ROD

piston

1шт.

8

826027C91

SEAL KIT

KIT, cylinder seal repair composed of: (1) o ring (NSS), (1) washer (NSS), (1) seal (NSS), (1) ring (NSS), (1) screw & washer (NSS)

1шт.
