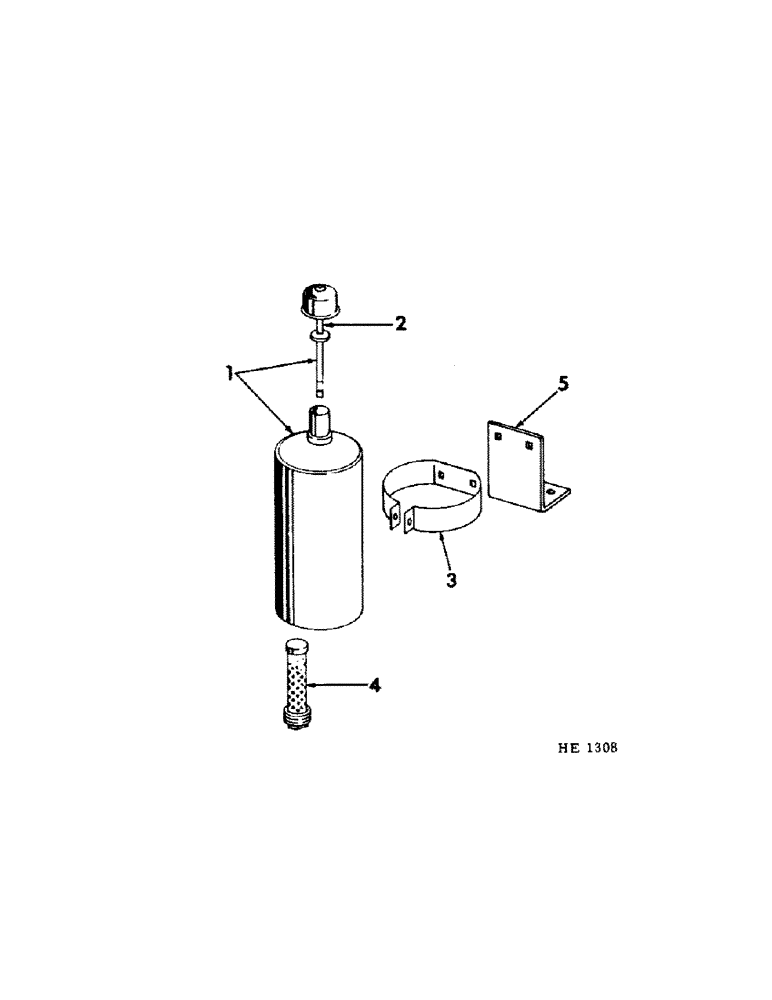

Запчасти Case IH 230 (10-09) - HYDRAULICS, HYDRAULIC RESERVOIR (07) - HYDRAULICS

1

597436R91

RESERVOIR W/CAP (includes 1-596357R1, dipstick)

1шт.

2

596357R1

CAP

DIPSTICK W/CAP, breather

1шт.

3

825772C1

STRAP, reservoir support

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

2шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

619037R91

STRAINER ASSY.

STRAINER, oil reservoir

1шт.

5

825771C1

SUPPORT, oil reservoir

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.
