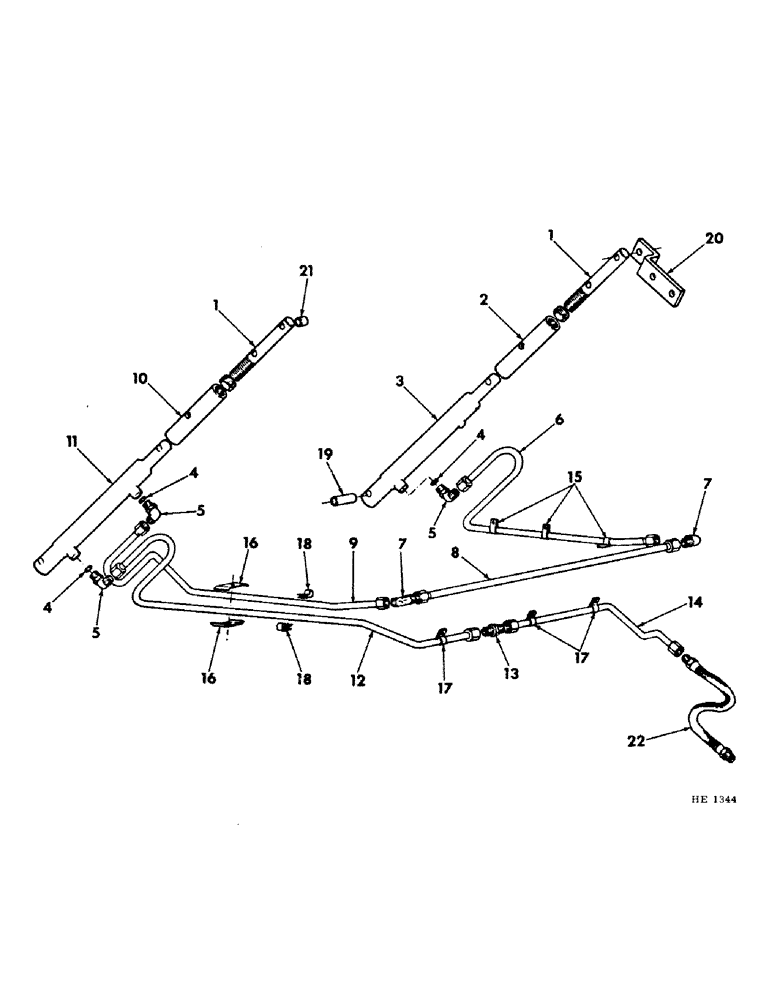

Запчасти Case IH 230 (10-04) - HYDRAULICS, HYDRAULICS - REEL LIFT (07) - HYDRAULICS

1

824862C1

STUD, reel cyl adjusting

2шт.

219791

HOSE

NUT, 1-1/8" hex jam

2шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN, 1/2 x 2-1/2" std-hd-dld RH

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

21958R1

HEADED PIN,1/2" x 2 3/4"

PIN, 1/2 x 2-3/4 std-hd-dld LH

1шт.

2

824864C1

SLEEVE, slave cyl adjusting

1шт.

21932R1

HEADED PIN,1/2" x 2"

PIN, 1/2 x 2" std-hd-dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

3

825295C91

CYLINDER

ASSY, reel lift slave (for service parts refer to "Cylinder - Reel Lift Slave")

1шт.

825393C1

PIN, slave cylinder

1шт.

Not part of cylinder.

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

Not part of cylinder.

1шт.

4

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

3шт.

5

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

hyd 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

3шт.

6

824721C11

TUBE, slave cylinder RH

1шт.

7

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

hyd

2шт.

8

824648C11

TUBE

slave cyl center (10-1/2 ft)

1шт.

8

824715C11

TUBE,0.375" OD, 143.2" Length

slave cyl center (12-1/2 ft)

1шт.

8

824716C11

TUBE

slave cyl center (14-1/2 ft)

1шт.

8

824717C11

TUBE

slave cyl center (16-1/2 ft)

1шт.

8

824718C1

TUBE

slave cyl center (19-1/2 ft)

1шт.

9

824719C11

TUBE

master cyl outlet

1шт.

10

824863C1

SLEEVE, master cyl adjusting

1шт.

21932R1

HEADED PIN,1/2" x 2"

PIN, 1/2 x 2-1/2" std-hd-dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

11

158749C91

CYLINDER

ASSY, reel lift master (for service parts refer to "Cylinder - Reel Lift Master")

1шт.

21958R1

HEADED PIN,1/2" x 2 3/4"

PIN, 1/2 x 2-3/4" std-hd-dld

1шт.

Not part of cylinder.

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

Not part of cylinder.

1шт.

12

825724C11

TUBE

master cyl inlet LH

1шт.

13

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

tube

1шт.

14

824955C11

TUBE, master cyl inlet LH (10-1/2 ft)

1шт.

14

824956C11

TUBE, master cyl inlet LH (12-1/2 ft)

1шт.

14

824957C11

TUBE, master cyl inlet LH (14-1/2 ft)

1шт.

14

824958C11

TUBE, master cyl inlet LH (16-1/2 ft)

1шт.

14

827593C1

TUBE, master cyl inlet LH (19-1/2 ft)

1шт.

15

595432R1

CLAMP

tube RH

3шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

2шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

16

614323R2

CLAMP

tube

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

17

595432R1

CLAMP

tube LH

3шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1" crg

3шт.

20744R1

WASHER, 11/32 x 7/8 sq-hole 16 ga

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

18

595432R1

CLAMP

tube LH

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

19

432984R2

SPACER,1/2" X-Strng Pipe x 1 7/8"

27/32 x 35/64 x 1-7/8" pipe slave cylinder

1шт.

20

825604C1

SUPPORT

slave cyl upper

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

21

217779R1

SPACER

27/32 x 5/8 x 7/16" pipe master cyl upper

1шт.

22

610980R91

HOSE, platform jumper

1шт.
